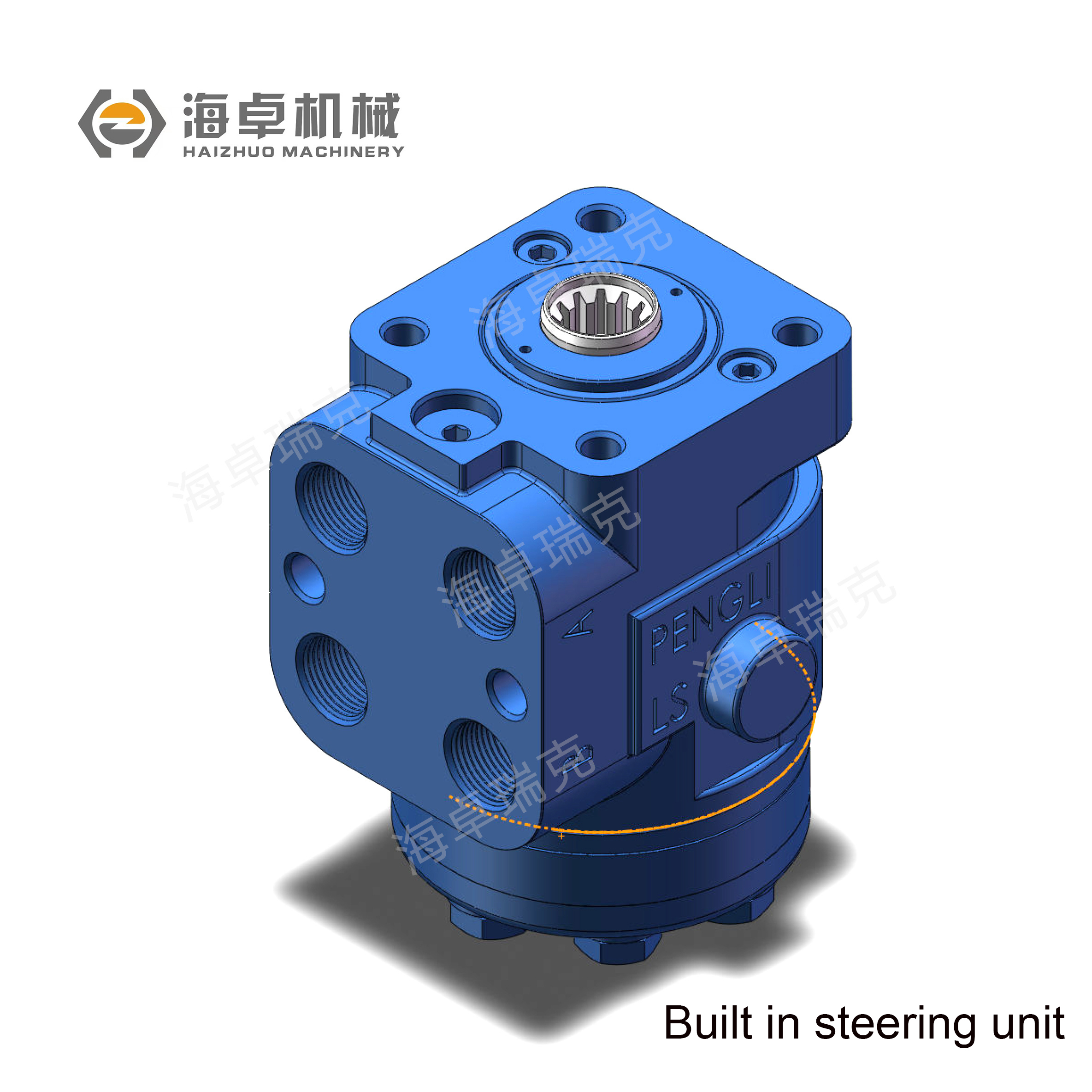

Bzz5-50b Hydraulic Steering Unit
| FOB Price:US $45-55/Piece (Min. Order 1 Piece ) Samples: US$ 80/Piece (Min.Order 1 Piece) | |||
| Model No. | BZZF5 | Material | Cast Iron |
| After-sales Service | Yes | Warranty | 12 Months |
| Port of shipment | QingDao | Condition | New |
| Application | Agriculture Machine | Type | Steering Unit |
| External Connection | Internal Spline | Application System | Load Sensing Steering System |
| Displacement | 63ml/r | User Selection | Oil Port, External Connection and Spraying Color |
| Customization | Available | Trademark | Haizhuo |
| Origin | Qingzhou Weifang China | HS Code | 8481802990 |
| Specification | 25cm*15cm*15cm | Transport Package | Wooden Case & Carton & Foam Board |
| Production Capacity | 45000pieces/Year | ||
Bzz5-50B series full hydraulic steering gear is widely used in steering of small wheel loaders, agricultural machinery, engineering vehicles, mining machinery, ships, etc.
It is used together with YXL-L160 priority valve to priority steering and merge with the working system when not steering, so as to realize the function of energy saving and consumption reduction,reliable operation, light and flexible.
Parameters & Connection
| Technical Parameter of BZZF5-50 | |||
| Project | Parameter | Project | Parameter |
| Product code | 2003020411 | Maximum power steering torque | ≤1.6N.m |
| Model | BZZF5-50B | Maximum speed | 60rpm |
| Displacement | 50ml/r | Set pressure of safety valve | 12.5MPa |
| Maximum inlet pressure | 16MPa | Setting pressure of two-way buffer valve | 18.5MPa |
Maximum continuous back pressure | 1.6MPa | ||
Company Profile
We focus on the design and development of engineering loaders, excavators and agricultural equipment series, nonstandard hydraulic equipment pump valves.
Among them, the most competitive hydraulic pump/ valve/ motor and steering gear have an annual production capacity of 300,000 sets.
Integrate the management concept of HPS lean production into the R & D process, production process, quality monitoring and after-sales service.
We will continue to cooperate effectively with Carter Shangong, Shandong Lingong, Liugong,Longgong and so on! And We also sincerely hope to provide high-quality and low-cost products on the foreign trade platform to friends who are interested in purchasing abroad!
Cooperative Partner
Qualification & Certification
Packaging & Shipping
You can choose the transportion as you need,and the packaging process will be strictly implemented, and the perfect delivery will be ensure to you.
1.The product has high quality and low price, and can be maintained for a long time.
2.Shell castings are provided by high-quality HT/QT/RuT manufacturers to ensure excellent performance.
3.Use environmental water-based paint manipulator for automatic spraying to ensure high-quality appearance.
4.The best hydraulic R & D team in the industry, from the technical process to reassuring security.
FAQ
1. We are an experienced hydraulic parts manufacturer with over 10 years.
2. Our team: customers-focused,you'll get reply within 5-10 minutes.3. Haizhuo: Provide products with good cost performance.
Q:Can I get a sample?
Of course you can,but you may need to pay sample charge which will be returned after formal order signed.
Q:What about Haizhuo delivery term?
10-15 days after final payment received.
Q:What about the payment term?
30%~50%advance payment,70%~50% balance by T/T.
Q: How can I get your pricelist?
Send an enquiry to us,our sales will offer you a free quotation reply within 24 hours.
If you are interested in our products and descriptions, please contact our product specialist. Thank you very much!
