HBYB Snow Plough
| FOB Price:US $1100-1600/Piece (Min. Order 1 Piece ) | |||
| Model No. | HBYB | Condition | New |
| After-sales Service | Yes | Warranty | 12 Months |
| Power Source | with The Help of Connecting The Main Engine Power | DIY Item | Product Color, Connection and Auxiliary Functions |
| External Connection 1 | Tractor′s Hydraulic System Refit | External Connection 2 | Loader′s Hydraulic System Refit |
| External Connection 3 | Truck′s Hydraulic System Refit | External Connection 4 | Forklift′s Hydraulic System Refit |
| Snowboarding Width | 2~3Custamizable | Swing Angle | ±30° |
| Pavement Profiling | Including | Floating Snow Cleaning Rate | 95% |
| Specification | Match according to customized size | Trademark | haizhuo |
| Origin | Qingzhou Weifang China | Transport Package | Welding Support & Wood Box |
| Port of shipment | QingDao | HS Code | 8430200000 |
| Production Capacity | 380sets/Year | ||

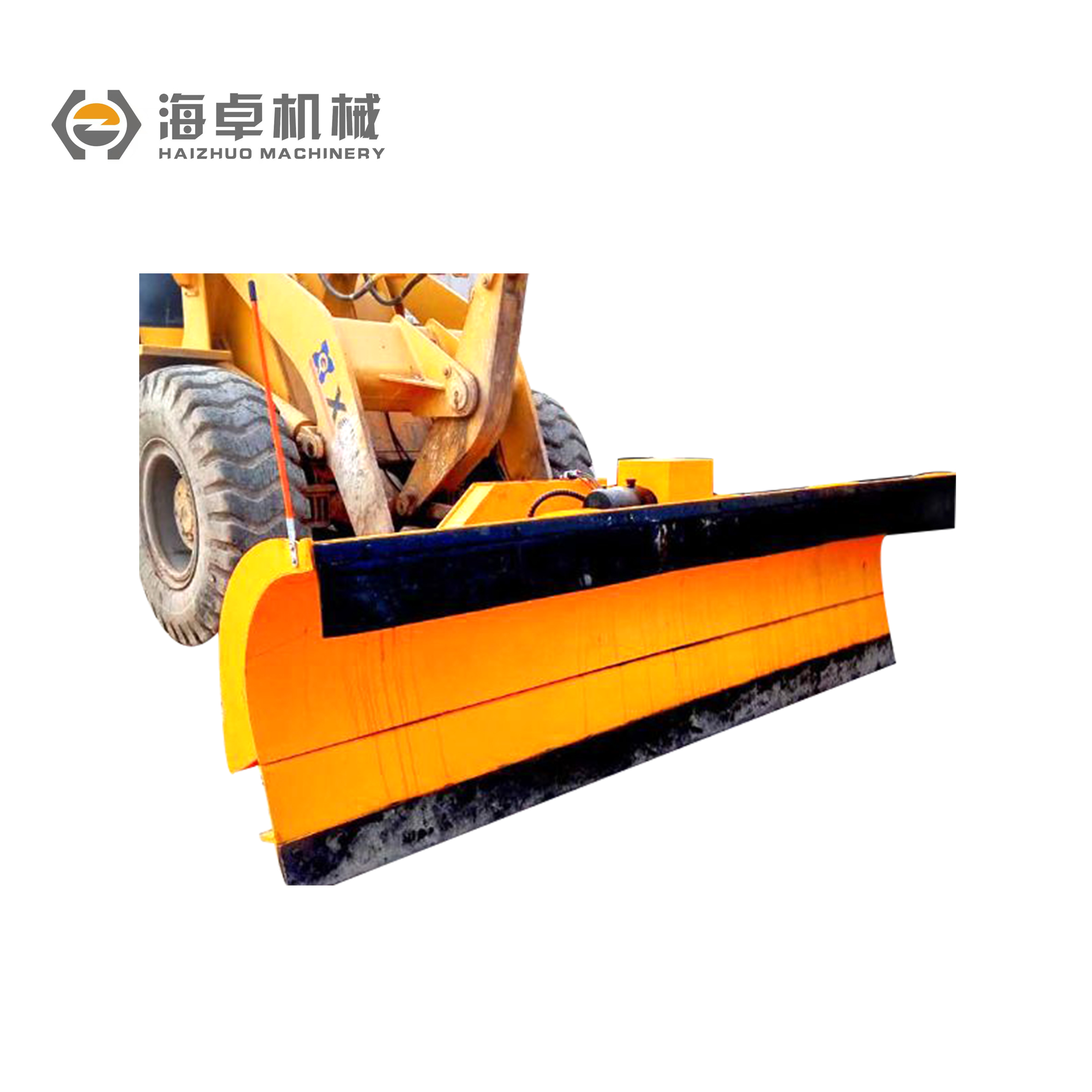

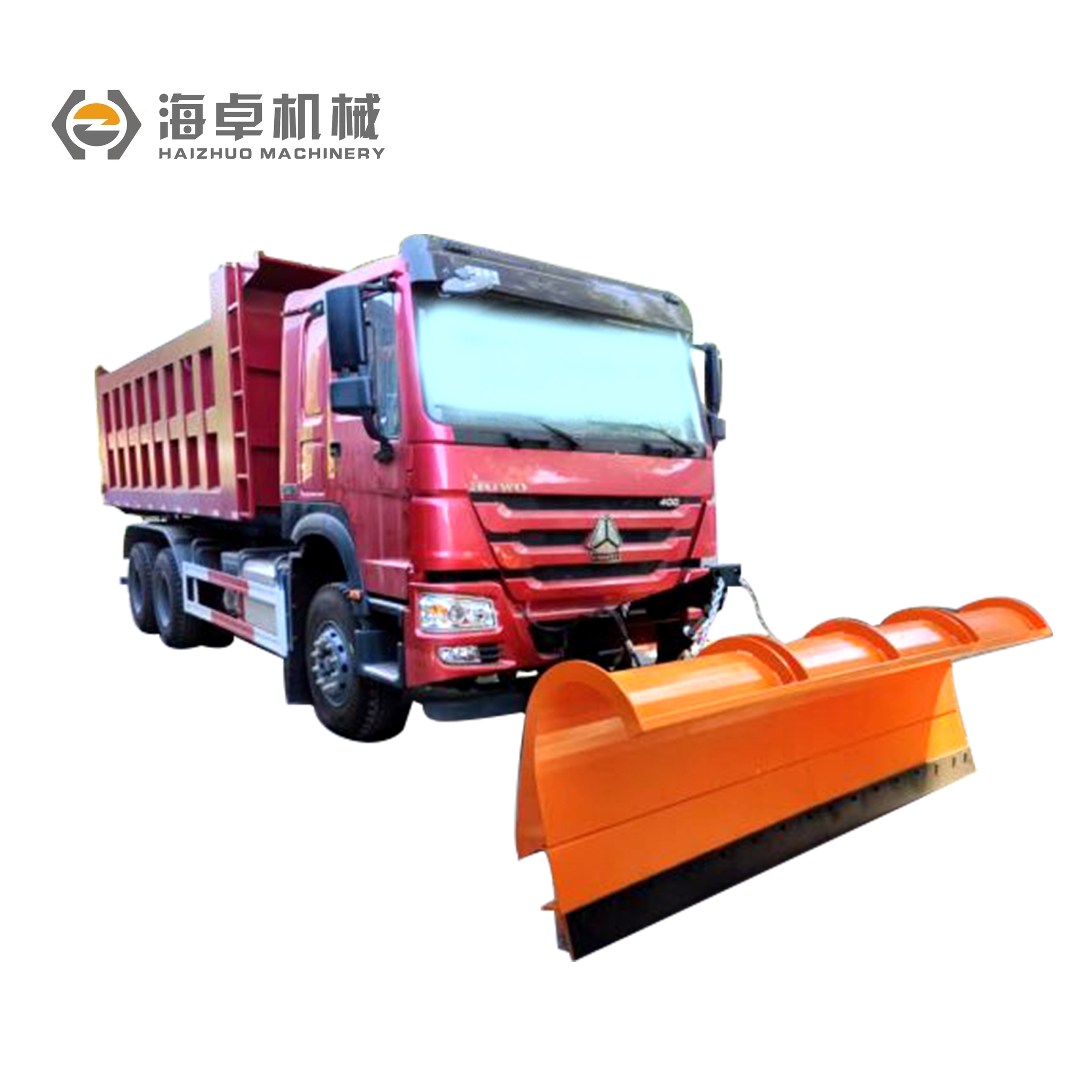

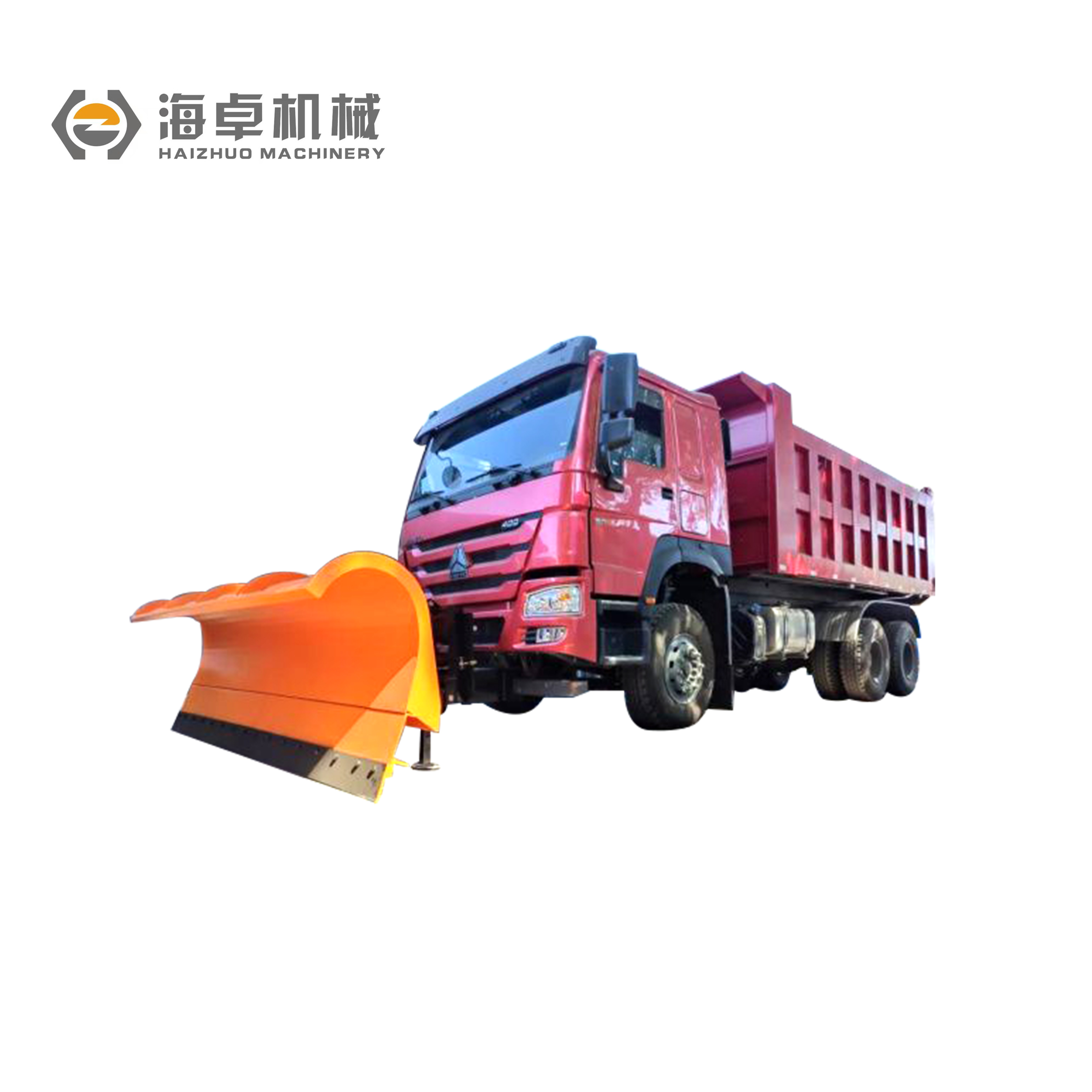

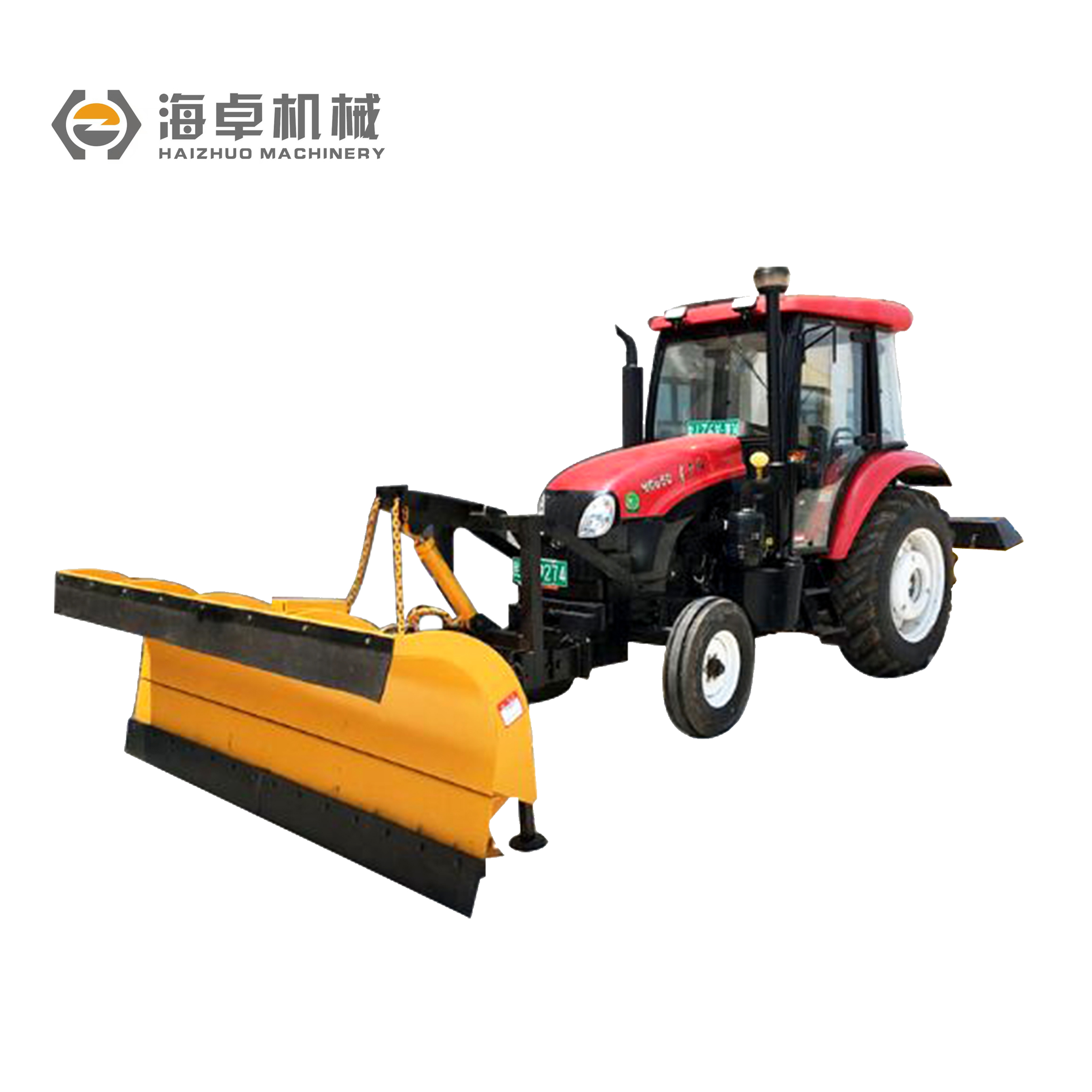

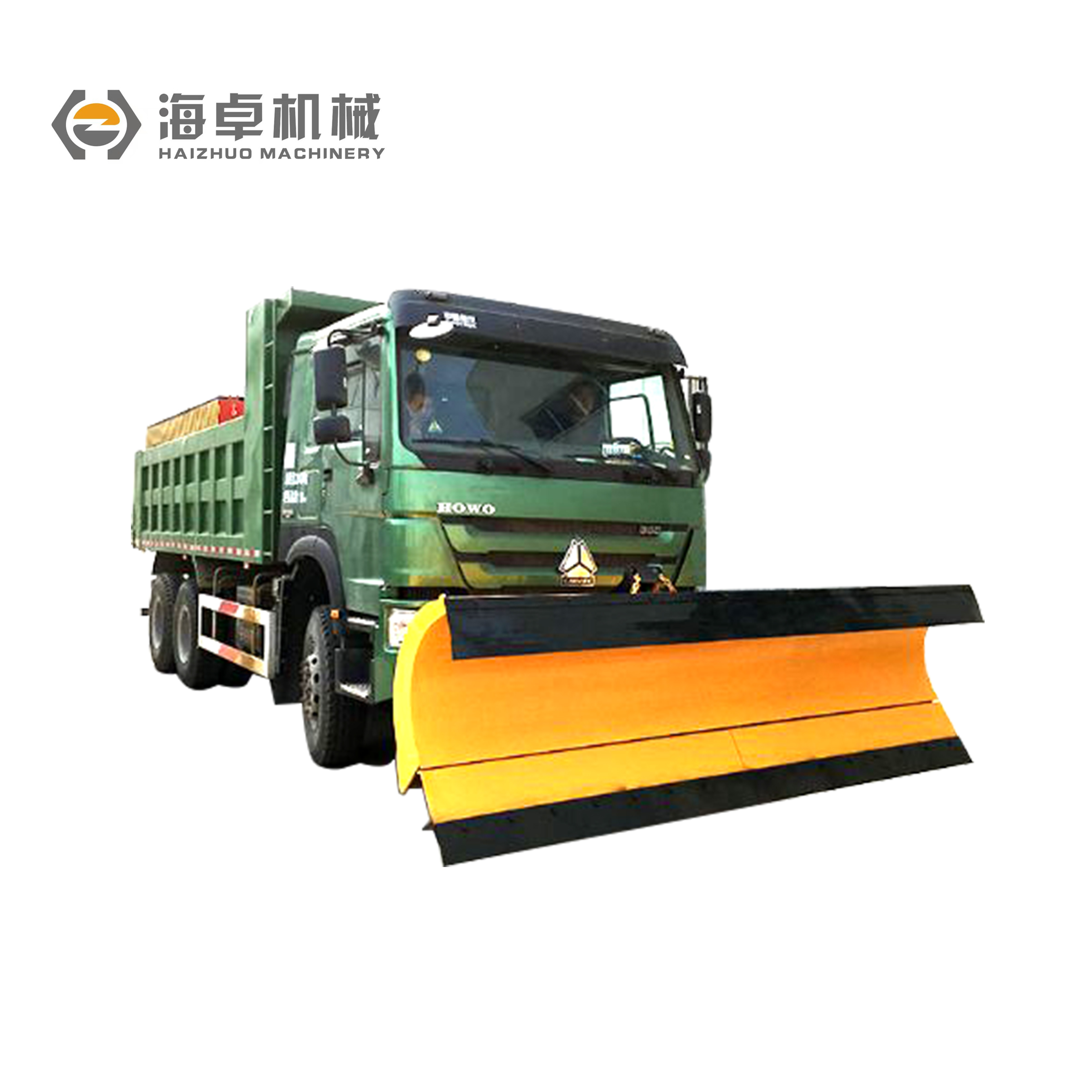

The snow plough can be installed in front of trucks, tractors and loaders without power.
The machine itself is equipped with a small power unit, and the lifting and deflection angle of the snow plough can be controlled through the oil cylinder. The driver can operate through the wired control box in the cab.
In case of obstacles such as speed bumps during operation, the lower part of the snow plough can automatically turn over to avoid obstacles, and then reset automatically.
The blade is made of high quality wear resistant steel plate, with long service life.With road profiling function, high snow removal rate.
Parameters & Connection
| Technical Parameters of HBYB Series Snow Plough | |||
| No. | Project | Parameter value | Note |
| 1 | Snow Pushing Height(M) | 1.8 | |
| 2 | Snow Pushing Width(M) | 2~3 | Customizable |
| 3 | Length of Accessories(M) | 2 | Customizable |
| 4 | Swing Angle(Degree) | ±30 | |
| 5 | Snow Removal Epeed(Km) | 5~15 | |
| 6 | System Pressure (MPa) | 16 | |
| 7 | Pavement Profiling | including | |
| 8 | Floating Snow Cleaning Rate | ≥95% | |
| 9 | Power Source | Connected to the hydraulic system of powered main engines such as Forklifts, Loaders, Tractors, Trucks, etc | |
Company Profile
We focus on the design and development of engineering loaders, excavators and agricultural equipment series, nonstandard hydraulic equipment pump valves.
Among them, the most competitive hydraulic pump/ valve/ motor and steering gear have an annual production capacity of 300,000 sets.
Integrate the management concept of HPS lean production into the R & D process, production process, quality monitoring and after-sales service.
We will continue to cooperate effectively with Carter Shangong, Shandong Lingong, Liugong,Longgong and so on! And We also sincerely hope to provide high-quality and low-cost products on the foreign trade platform to friends who are interested in purchasing abroad!
Cooperative Partner
Qualification & Certification
Packaging & Shipping
You can choose the transportion as you need,and the packaging process will be strictly implemented, and the perfect delivery will be ensure to you.
1.The product has high quality and low price, and can be maintained for a long time.
2.Shell castings are provided by high-quality HT/QT/RuT manufacturers to ensure excellent performance.
3.Use environmental water-based paint manipulator for automatic spraying to ensure high-quality appearance.
4.The best hydraulic R & D team in the industry, from the technical process to reassuring security.
