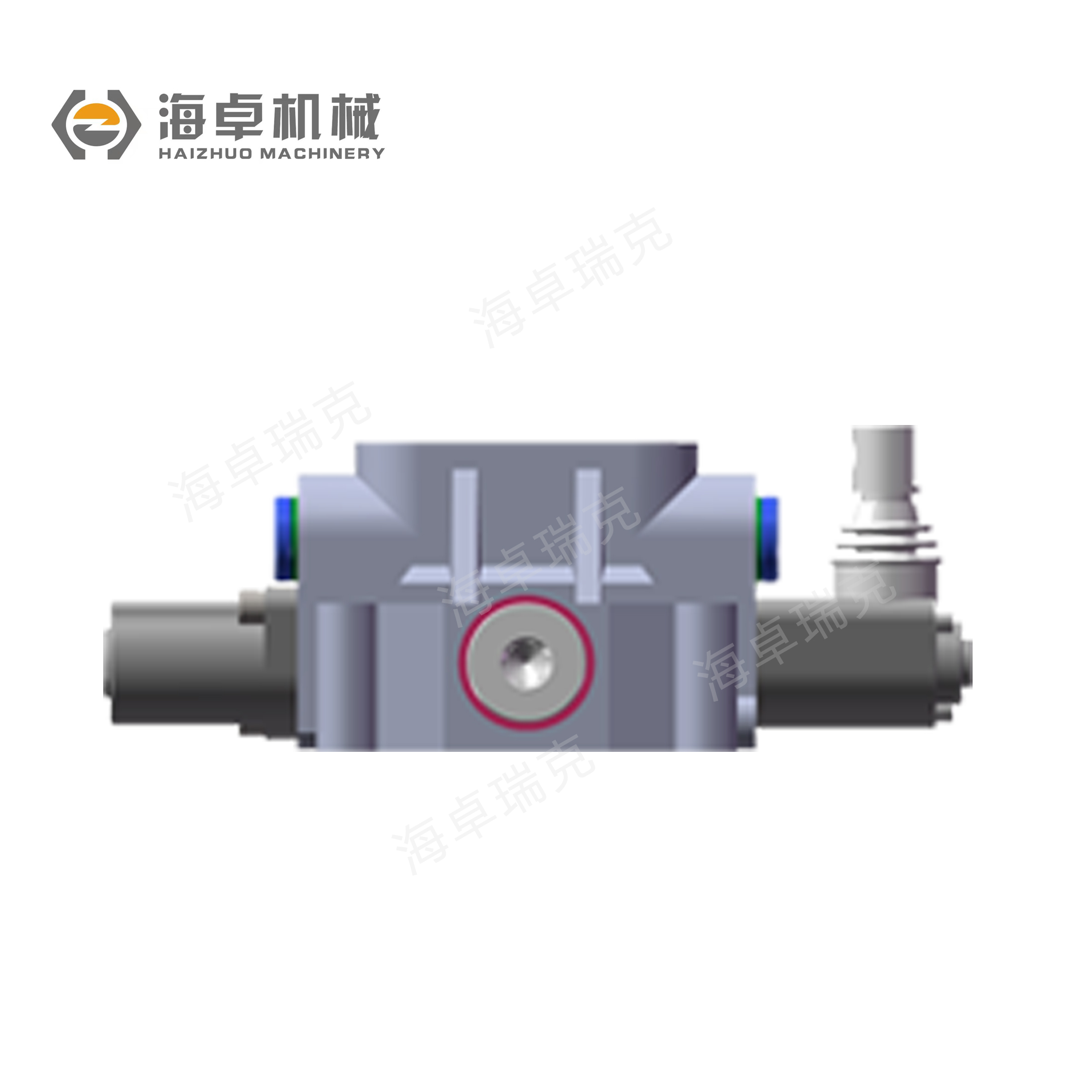

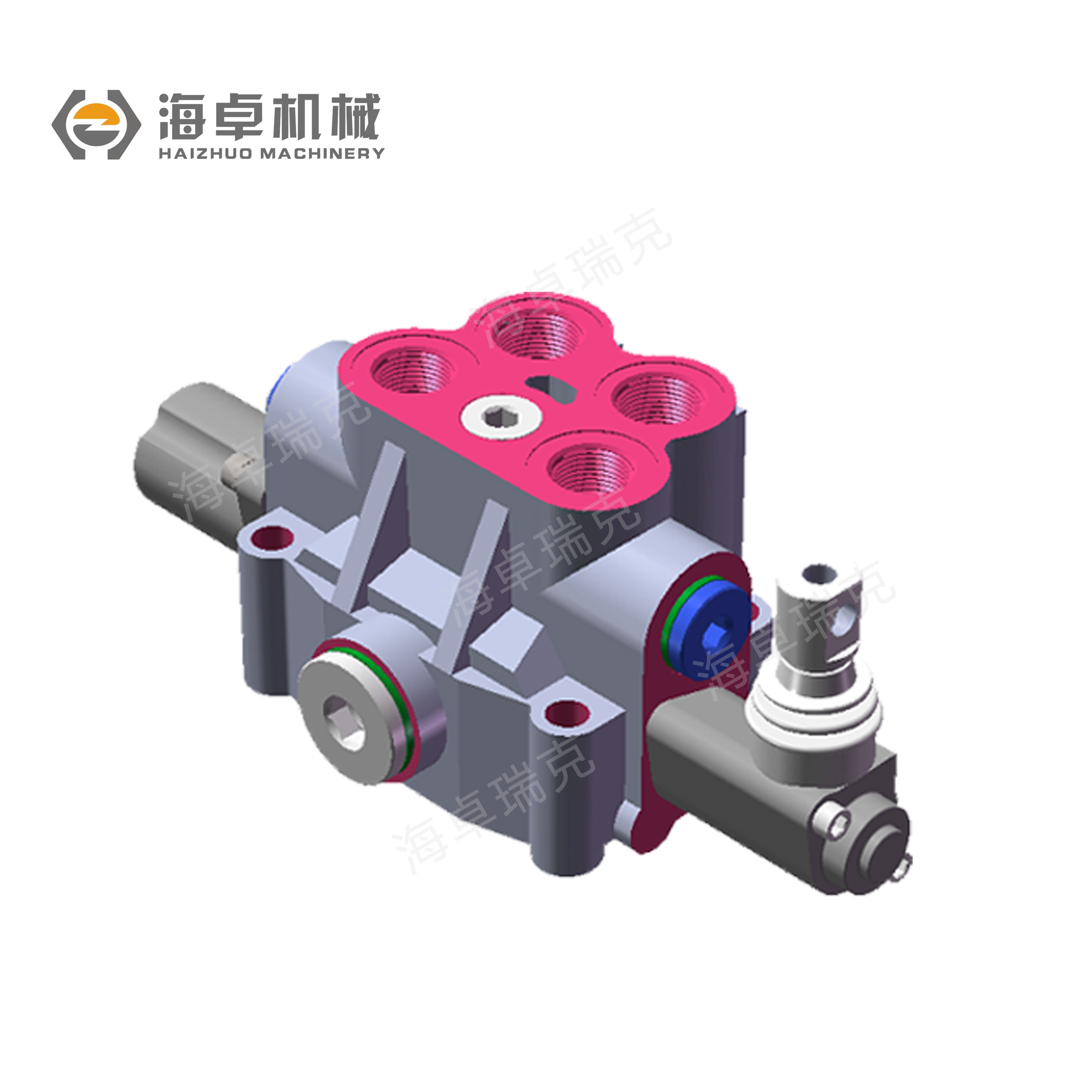

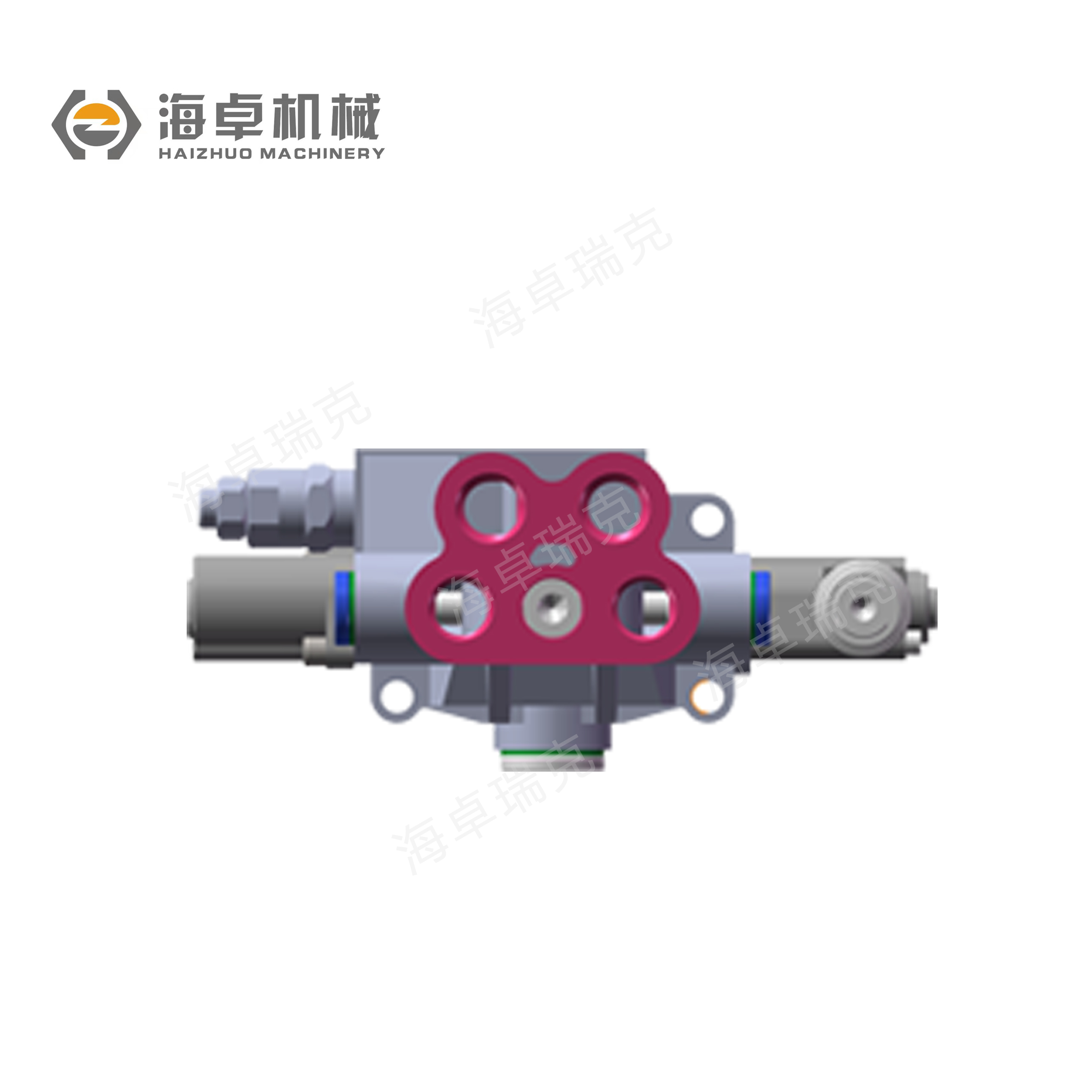

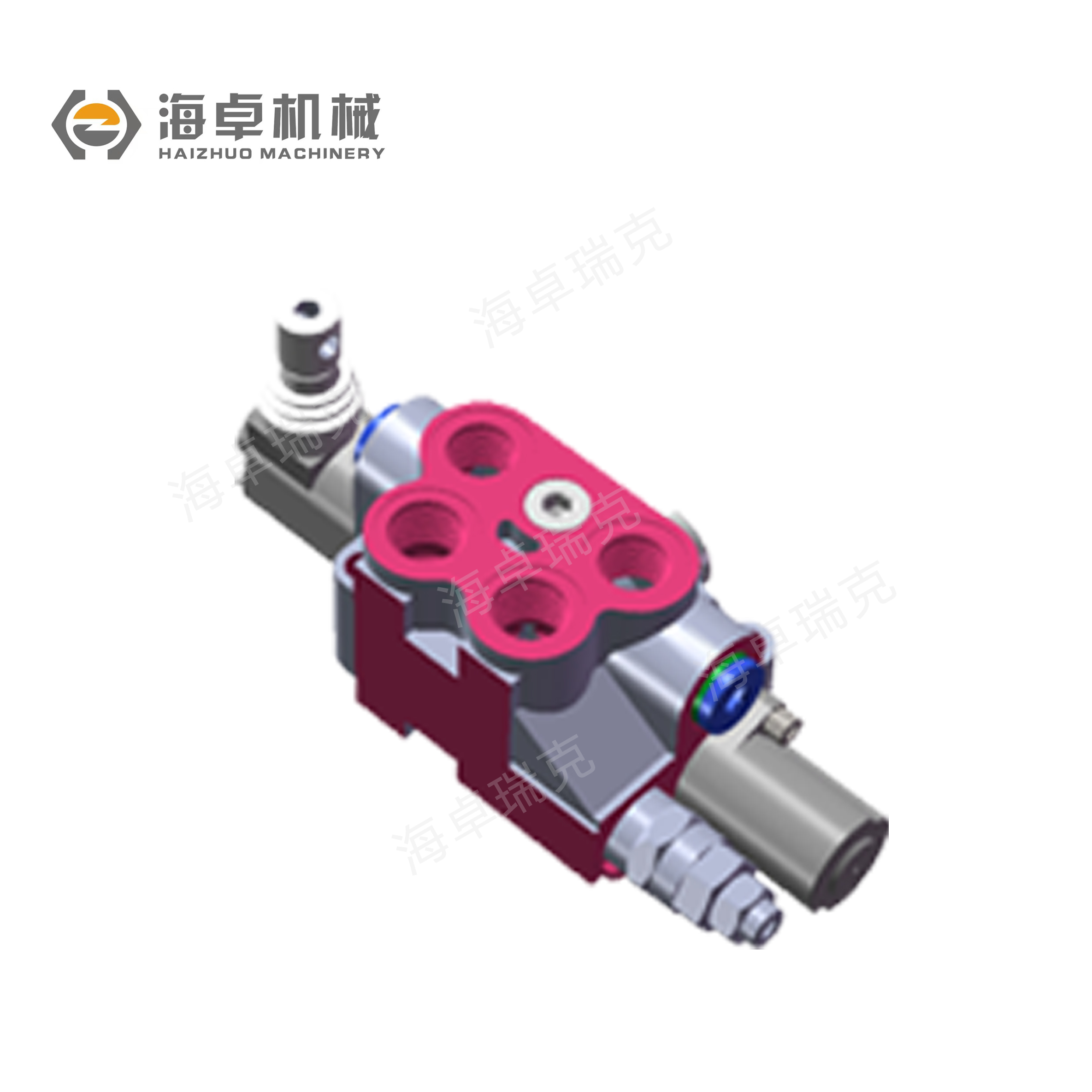

DF150 Manual Operation Hydraulic Single Valve
| FOB Price:US $37-45/Piece (Min. Order 1 Piece ) Sample Price: US$ 55/Piece (Min. Order 1 Piece ) | |||
| Model No. | DF150 | Type | Manual Operated |
| After-sales Service | Yes | Warranty | 12 Months |
| Temperature | -20~+100ºC | Origin | Qingzhou Weifang China |
| Media | Oil | Custom Scope | Oil Port, External Connection and Spraying Color |
| Material | Cast Iron | Applicable Fields | Tractor & Agriculture Machine |
| Standard | Standard | Connection Style | Internal Thread |
| Power | Hydraulic | Control Force (N) | 120 |
| Working Pressure(MPa) | 12~18 | Operation Mode | Handle Forward |
| Rate Flow(L/Min) | 50 | Couplet Number | 1 |
| Transport Package | Wooden Case & Carton & Foam Board | HS Code | 8481802990 |
| Specification | 40CM*30CM*25CM | Port of shipment | QingDao |
| Production Capacity | 20000pieces/Year | Trademark | Haizhuo |
The oil inlet check valve is built in the valve body and the valve core adopts solid structure.Small deformation under high pressure and high temperature can achieve small fit clearace.
At the same time, the reasonable structural design of unloading groove and balance groove can effectively awards the negative impact of hydraulic clamping during back and forth operation.
Our advantage structure 2:
The overload valve seat is built in the valve body which makes the assembly compact and greatly reduces the risk of oil leakage on the joint surface.
High pressure level, from 16 MPa to 20 MPa and single to nine pieces can be provided according to customer requirements.
Parameters & Connection
| Technical Parameters of DFN50/80F(Z) Multiway Valve | ||||||||
| Model No. | Operation Mode | Rate Flow (L/min) | Pressure(MPa) | Temperature Range (ºC) | Throttle Valve | Application | ||
| Max. | Safety Valve | Back | ||||||
| DFN50Z | Handle Forward | 50 | 25 | 12~18 | 2 | -20~100ºC | Optional | Small and medium tractors |
| DFN50F | Handle Reverse | 50 | 25 | 12~18 | 2 | -20~100ºC | Small and medium tractors | |
| DFN80Z | Handle Forward | 80 | 25 | 12~18 | 2 | -20~100ºC | Large tractors | |
| DFN80F | Handle Reverse | 80 | 25 | 12~18 | 2 | -20~100ºC | Large tractors | |
Company Profile
We focus on the design and development of engineering loaders, excavators and agricultural equipment series, nonstandard hydraulic equipment pump valves.
Among them, the most competitive hydraulic pump/ valve/ motor and steering gear have an annual production capacity of 300,000 sets.
Integrate the management concept of HPS lean production into the R & D process, production process, quality monitoring and after-sales service.
We will continue to cooperate effectively with Carter Shangong, Shandong Lingong, Liugong,Longgong and so on! And We also sincerely hope to provide high-quality and low-cost products on the foreign trade platform to friends who are interested in purchasing abroad!
Cooperative Partner
Qualification & Certification
Packaging & Shipping
You can choose the transportion as you need,and the packaging process will be strictly implemented, and the perfect delivery will be ensure to you.
1.The product has high quality and low price, and can be maintained for a long time.
2.Shell castings are provided by high-quality HT/QT/RuT manufacturers to ensure excellent performance.
3.Use environmental water-based paint manipulator for automatic spraying to ensure high-quality appearance.
4.The best hydraulic R & D team in the industry, from the technical process to reassuring security.
