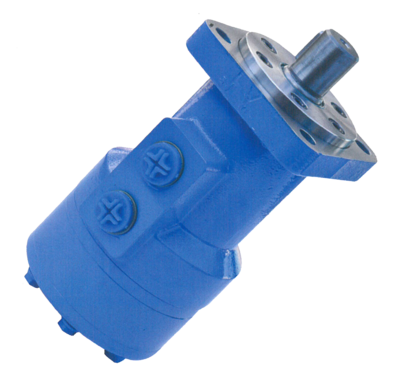

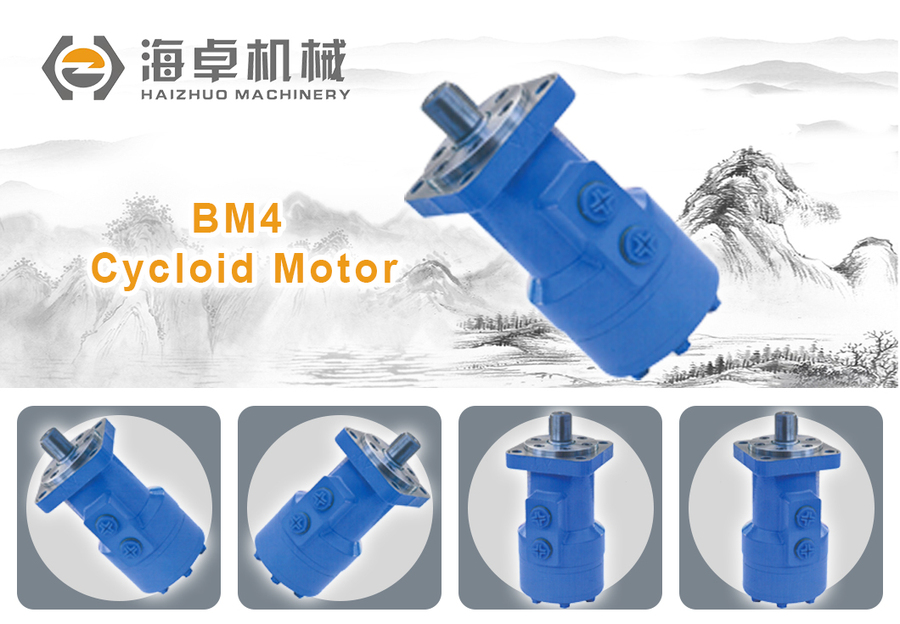

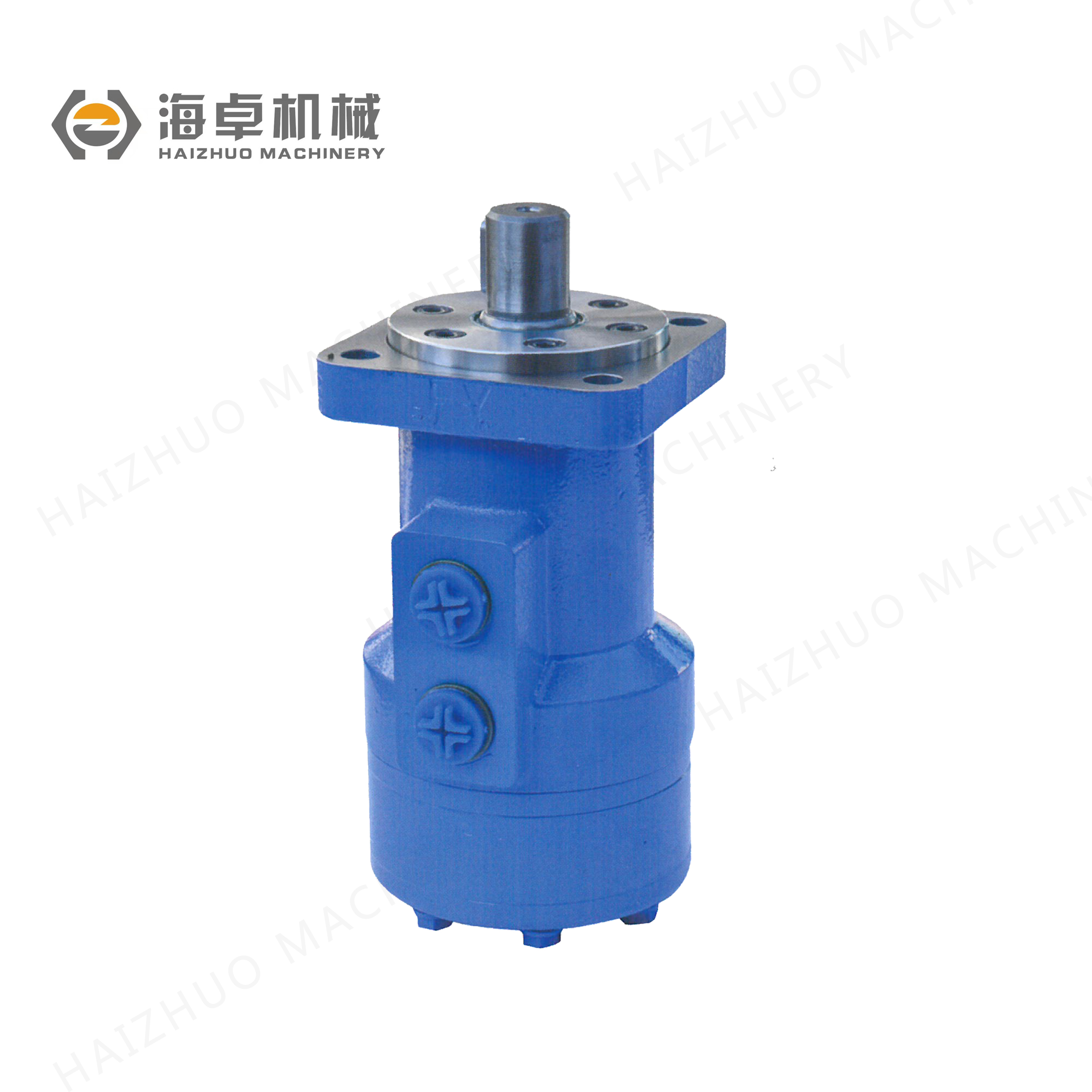

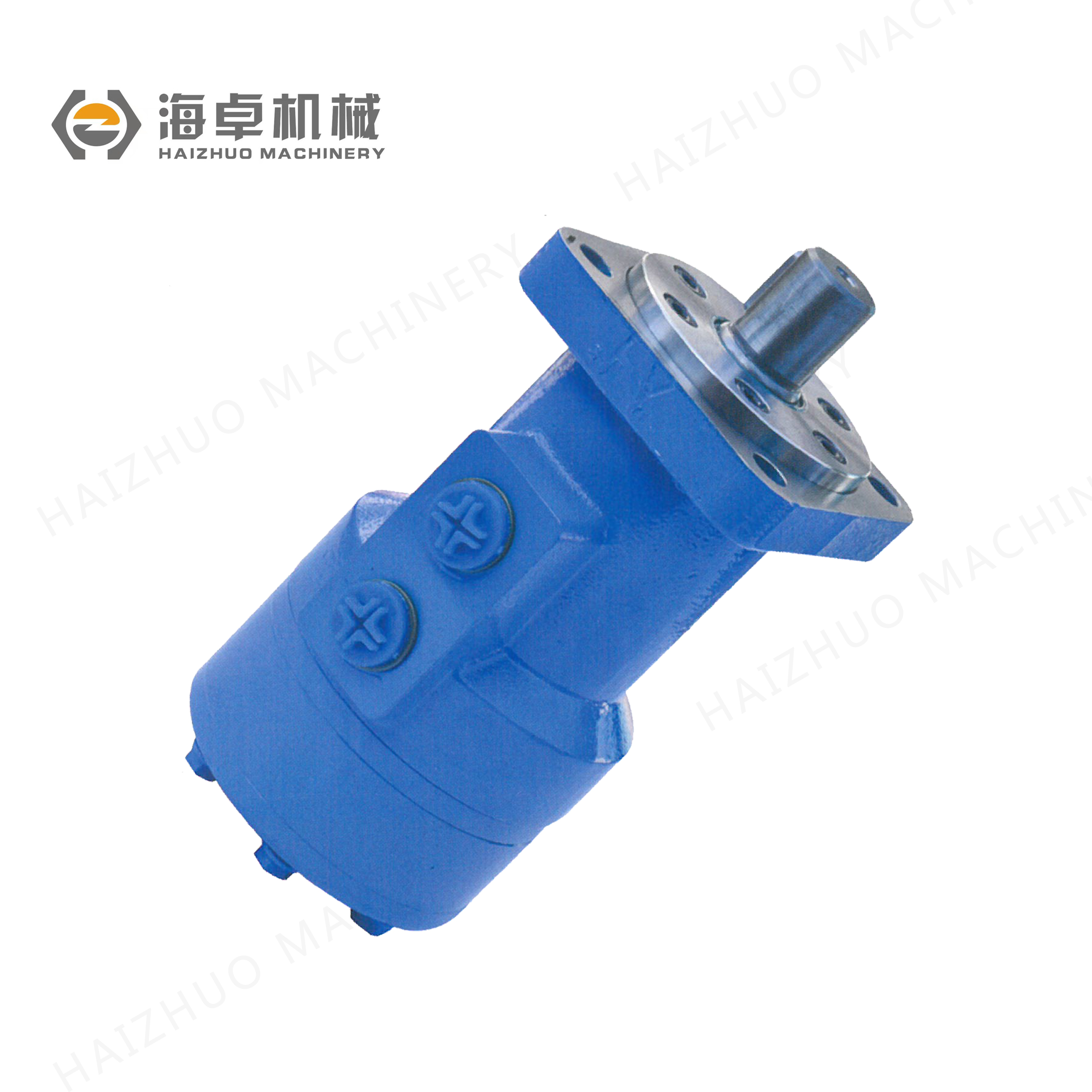

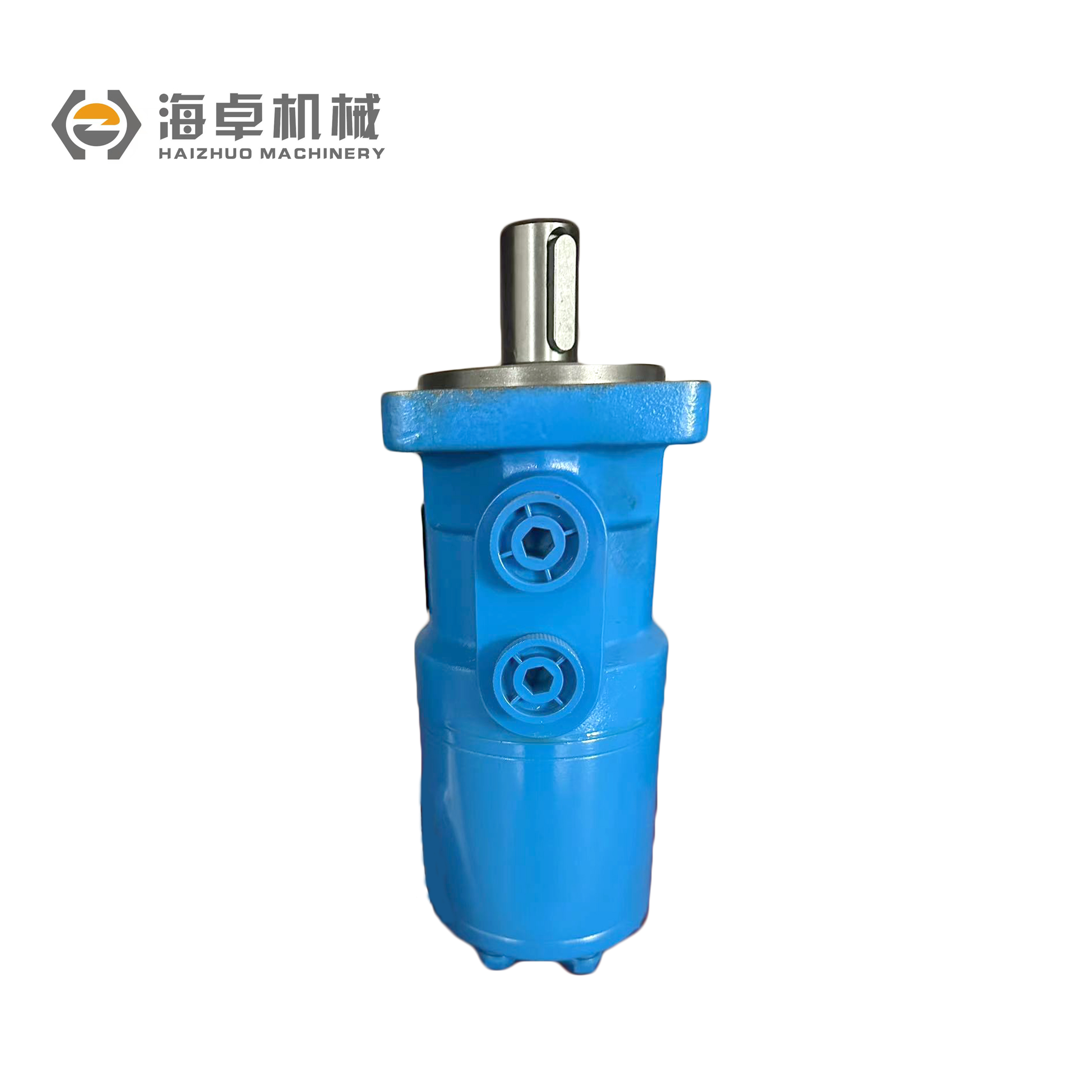

Bm4-245 Hydraulic Cycloid Steering Motor
BM4 series motors have the following structural features:
1. The embedded column stator and rotor design has higher oil distribution accuracy and mechanical efficiency.
2. Double rolling bearings at both ends are designed to have large lateral bearing capacity.
3. Reliable shaft seal design can withstand higher back pressure and can be used in series and parallel.
4. The forward and reverse conversion is convenient and the rotation speed is stable.
5. Various installation forms of connecting flanges, output shafts and oil ports.
6. It is widely used in petroleum, coal machinery, small cranes and other construction machinery.

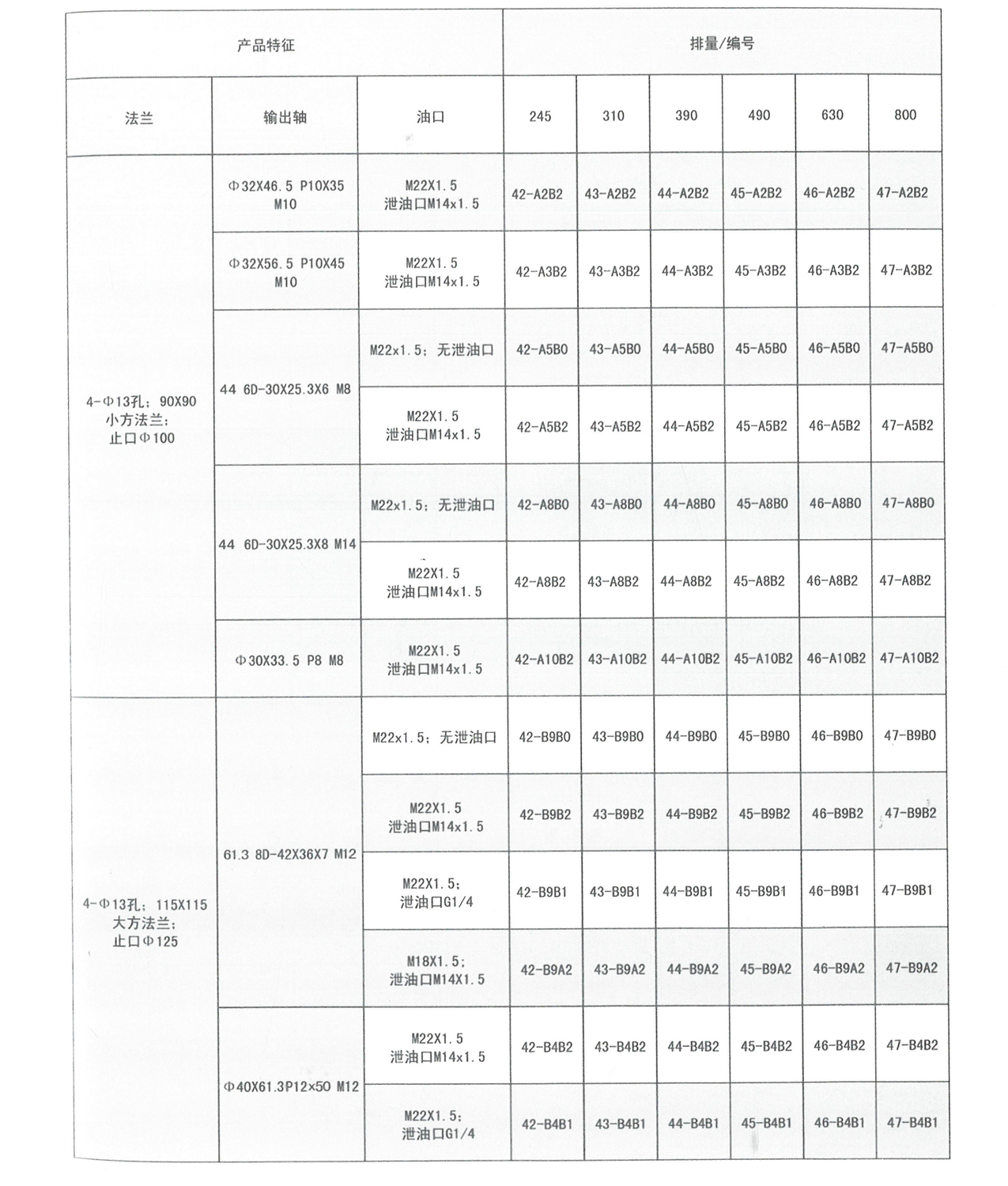

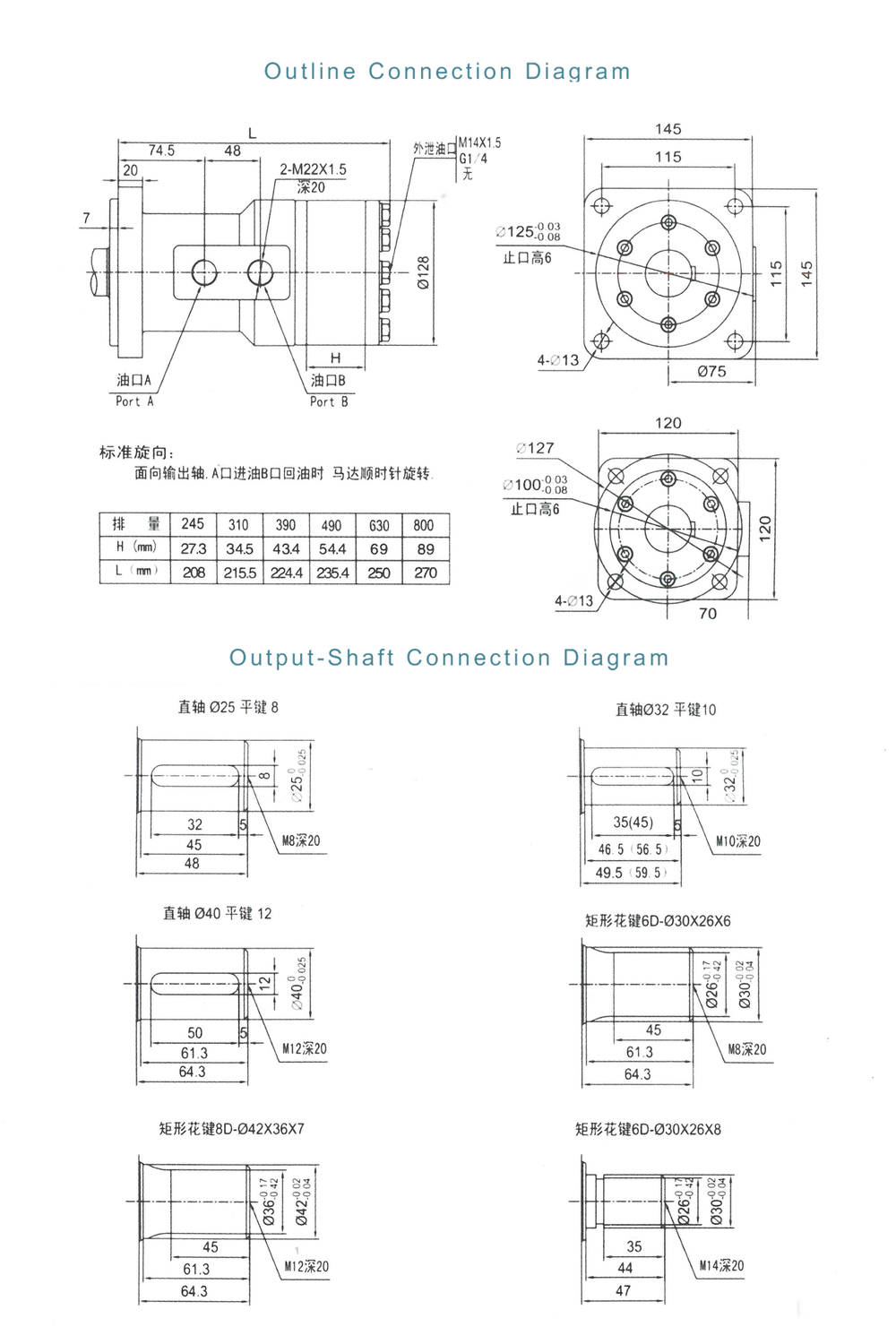

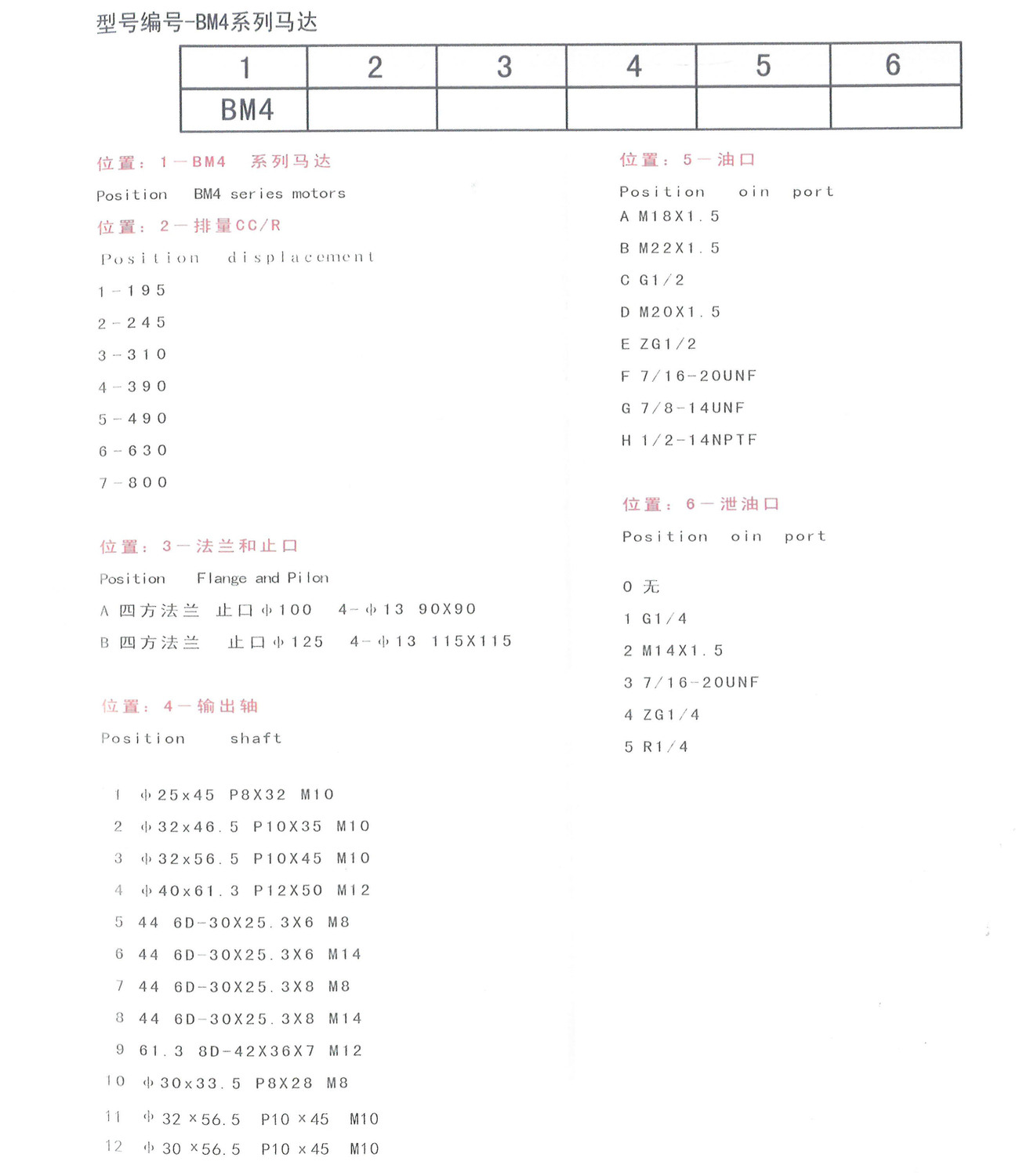

Parameters & Connection
Main Specification of BM4 Series Displacement(ml/r) 245 310 390 490 630 800 Flow(LPM) cont 80 80 80 80 80 80 int. 100 100 100 100 100 100 Speed(RPM) cont 320 250 200 156 120 106 int. 390 300 240 200 150 120 Pressure(Mpa) cont 14 14 14 14 12.5 10 int. 15 15 15 15 13 12 Torque(N*m) cont 435 556 698 870 997 1024 int. 502 664 798 1058 1178 1380
Company Profile
We focus on the design and development of engineering loaders, excavators and agricultural equipment series, nonstandard hydraulic equipment pump valves.
Among them, the most competitive hydraulic pump/ valve/ motor and steering gear have an annual production capacity of 300,000 sets.
Integrate the management concept of HPS lean production into the R & D process, production process, quality monitoring and after-sales service.
We will continue to cooperate effectively with Carter Shangong, Shandong Lingong, Liugong,Longgong and so on! And We also sincerely hope to provide high-quality and low-cost products on the foreign trade platform to friends who are interested in purchasing abroad!
Cooperative Partner
Qualification & Certification
Packaging & Shipping
You can choose the transportion as you need,and the packaging process will be strictly implemented, and the perfect delivery will be ensure to you.
1.The product has high quality and low price, and can be maintained for a long time.
2.Shell castings are provided by high-quality HT/QT/RuT manufacturers to ensure excellent performance.
3.Use environmental water-based paint manipulator for automatic spraying to ensure high-quality appearance.
4.The best hydraulic R & D team in the industry, from the technical process to reassuring security.
FAQ
1. We are an experienced hydraulic parts manufacturer with over 10 years.
2. Our team: customers-focused,you'll get reply within 5-10 minutes.3. Haizhuo: Provide products with good cost performance.
Q:Can I get a sample?
Of course you can,but you may need to pay sample charge which will be returned after formal order signed.
Q:What about Haizhuo delivery term?
10-15 days after final payment received.
Q:What about the payment term?
30%~50%advance payment,70%~50% balance by T/T.
Q: How can I get your pricelist?
Send an enquiry to us,our sales will offer you a free quotation reply within 24 hours.
If you are interested in our products and descriptions, please contact our product specialist. Thank you very much!
