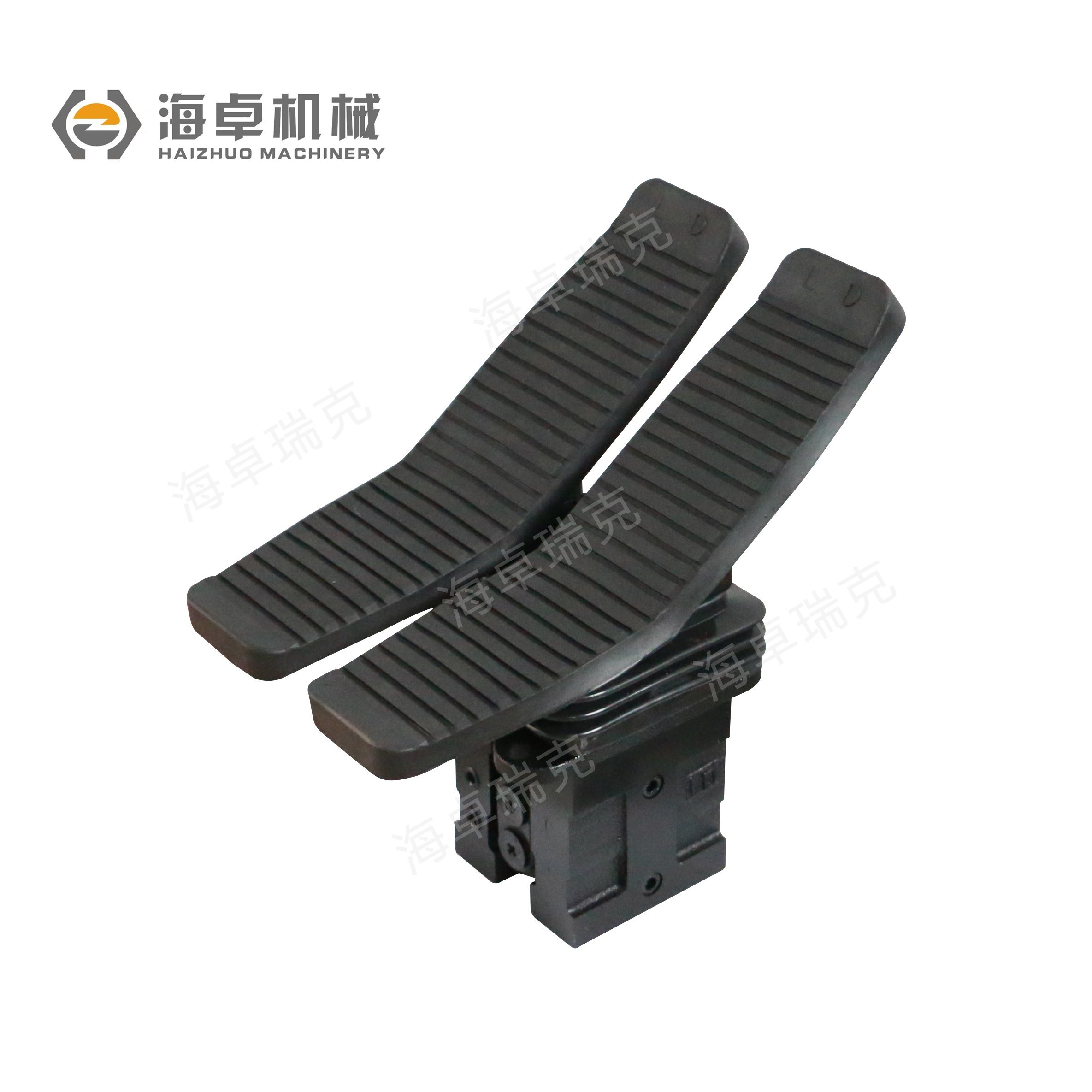

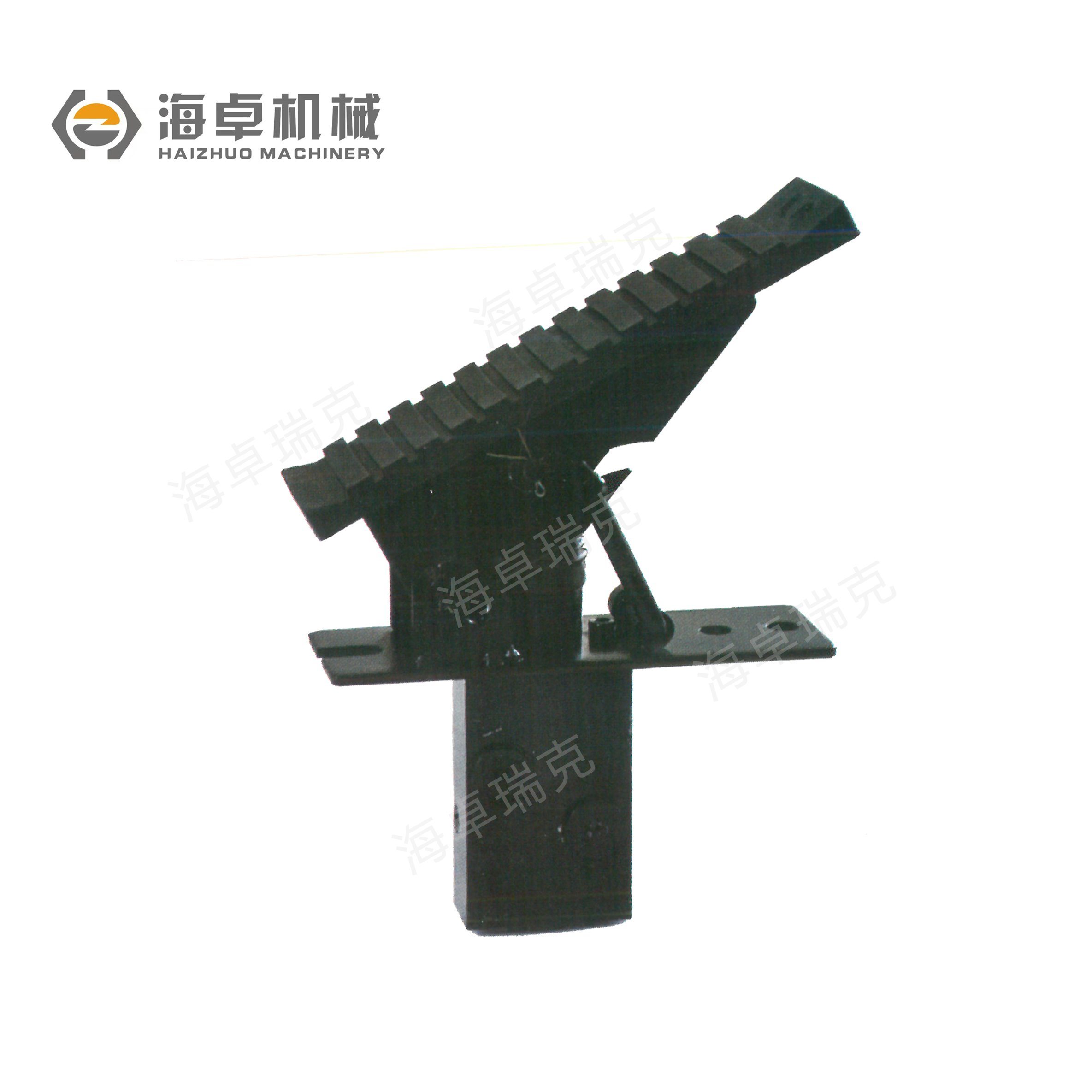

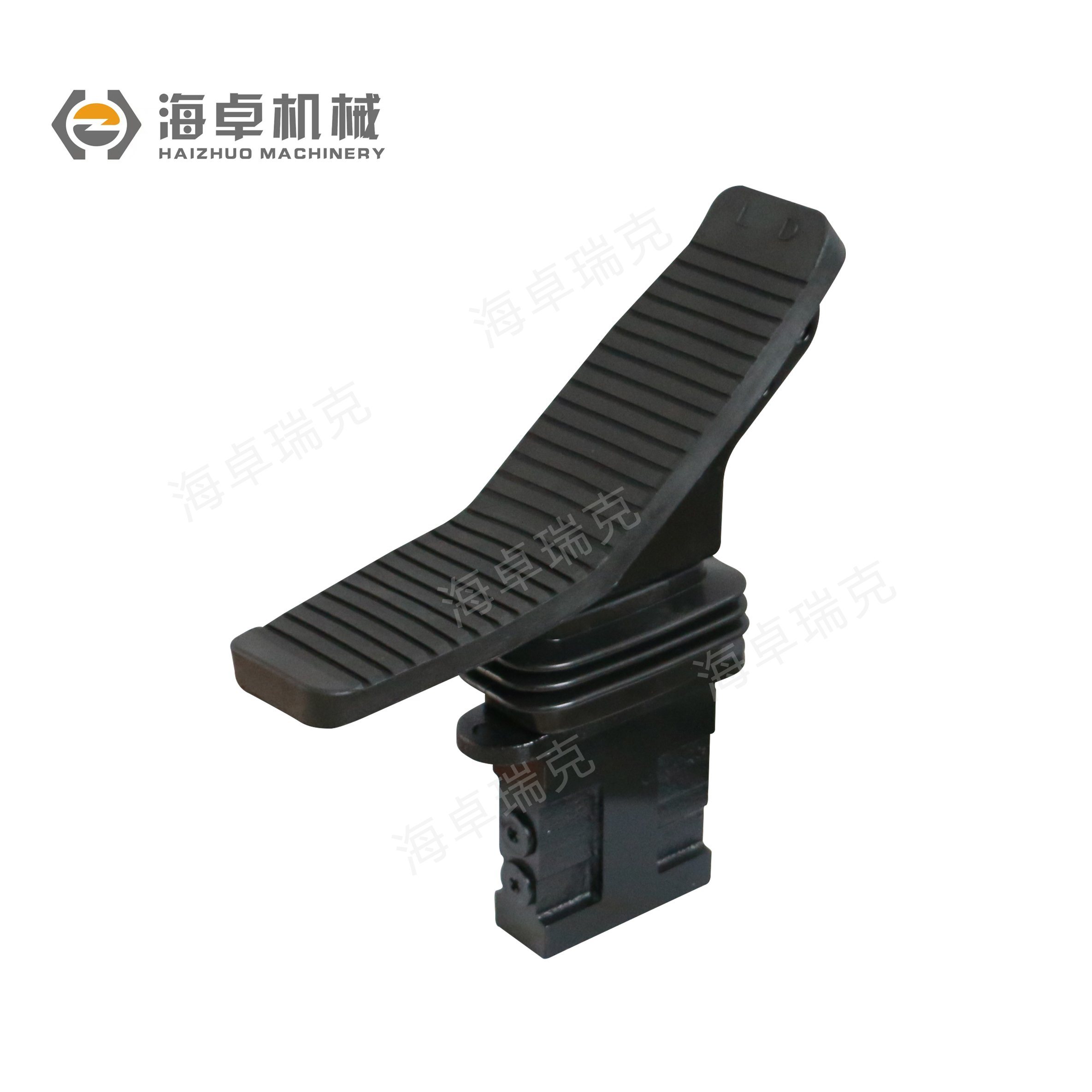

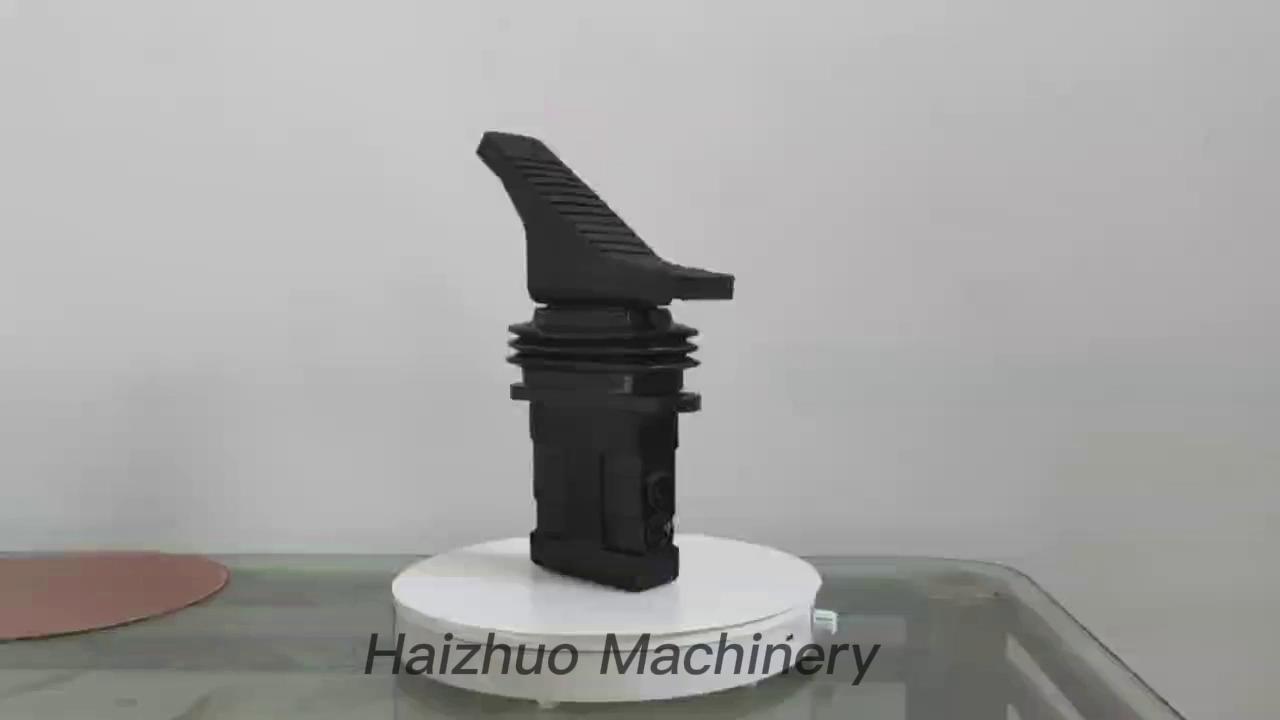

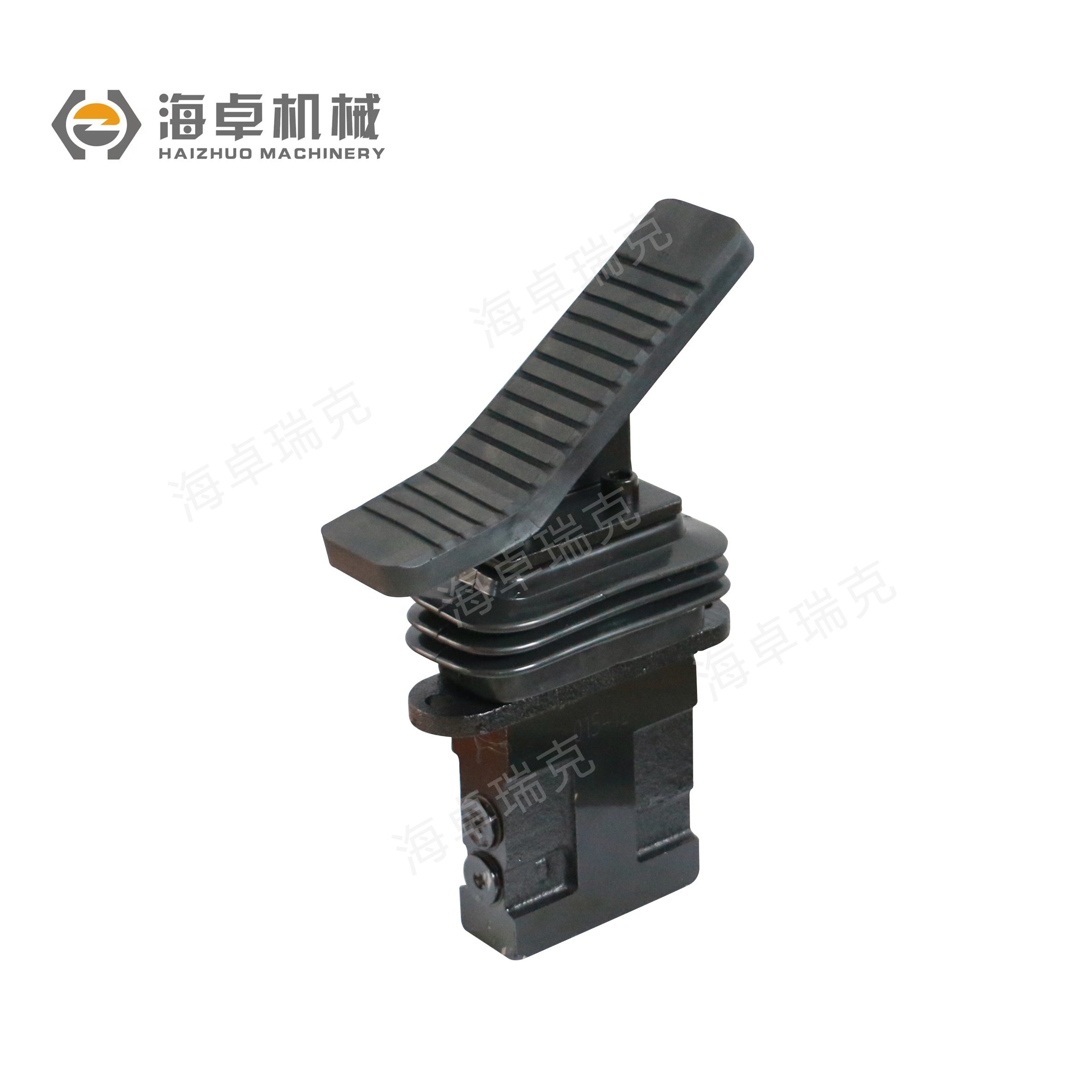

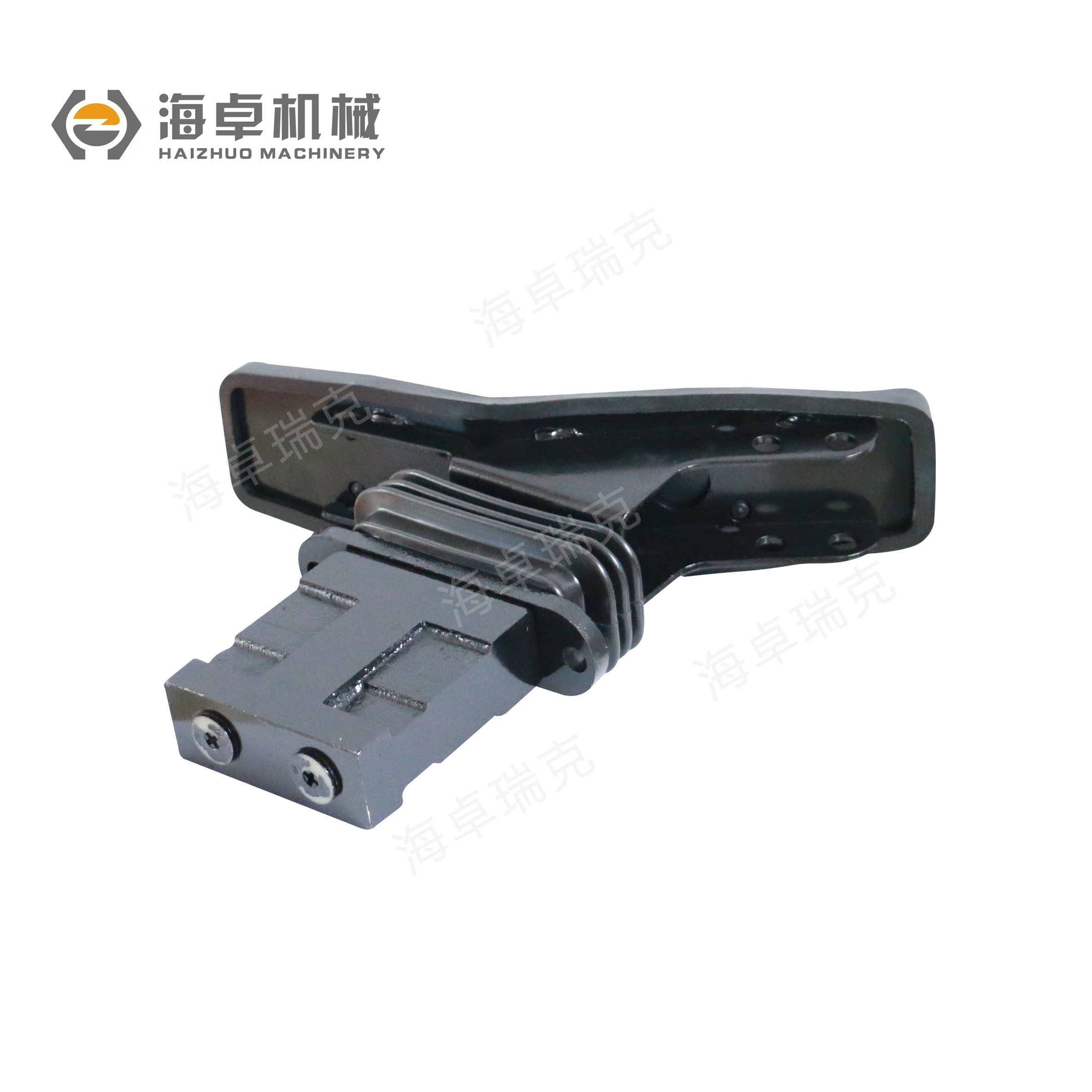

HZPVF-01P Pilot Valve
| FOB Price:US $110-150/Piece (Min. Order 1 Piece ) Sample Price:US $180/Piece (Min. Order 1 Piece ) | |||
| Model No. | HZPVF-01P | Specification | 40cm*18cm*18cm |
| After-sales Service | Yes | Warranty | 12 Months |
| Control System | Pilot Control | Applicable Fields | Construction &Mining & Agriculture Machinery |
| Customization | Available | Trademark | haizhuo |
| Origin | Qingzhou Weifang China | Transport Package | Wooden Case & Carton & Foam Board |
| Port of shipment | QingDao | HS Code | 8481802990 |
| Production Capacity | 18000 pieces/Year | ||
The castings adopt standard ht250/rut340 or die cast aluminum, and the inner cavity adopts ultrasonic cleaning to remove burrs, effectively ensuring the cleanliness of the products;
Electromagnets are purchased from high-quality manufacturers and have been verified by millions of durability type tests to ensure high power on and off sensitivity and good reliability.
Our product advantage 2:
The valve has light weight, comfortable operation and reliable and accurate control. According to the matching main control valve, it is divided into two way and three-way connections.
Parameters & Connection
| Technical Parameters of HZPVF-01 Series Foot Pilot Valve | |||||||||||||
Model No. | Foot Pedal Type | Norminal flow (L/min) | Pressure (Kgf/cm) | Range of control (Kgf/cm) | Range of Torque (Kgf.cm) | Max Back Pressure (Kgf/cm) | Electromagnet | Joint no. | Application | ||||
| Out-Put | Max | Working voltage(V) | Working current (mA) | Working temprature(ºC) | Rate suction(N) | ||||||||
| HZPVF-01 | Sigal Foot PV | 10 | 27 | 100 | 5~17 | 6.7~18.7 | 3 | __ | __ | -40~120 | __ | 1 | Small Excavator & Wheel Loader |
HZPVF- 01S | Short Pedal Foot PV | Small Excavator & Wheel Loader | |||||||||||
HZPVF- 01P | P-type Foot Pedal | Small Excavator & Wheel Loader | |||||||||||
Company Profile
We focus on the design and development of engineering loaders, excavators and agricultural equipment series, nonstandard hydraulic equipment pump valves.
Among them, the most competitive hydraulic pump/ valve/ motor and steering gear have an annual production capacity of 300,000 sets.
Integrate the management concept of HPS lean production into the R & D process, production process, quality monitoring and after-sales service.
We will continue to cooperate effectively with Carter Shangong, Shandong Lingong, Liugong,Longgong and so on! And We also sincerely hope to provide high-quality and low-cost products on the foreign trade platform to friends who are interested in purchasing abroad!
Cooperative Partner
Qualification & Certification
Packaging & Shipping
You can choose the transportion as you need,and the packaging process will be strictly implemented, and the perfect delivery will be ensure to you.
1.The product has high quality and low price, and can be maintained for a long time.
2.Shell castings are provided by high-quality HT/QT/RuT manufacturers to ensure excellent performance.
3.Use environmental water-based paint manipulator for automatic spraying to ensure high-quality appearance.
4.The best hydraulic R & D team in the industry, from the technical process to reassuring security.
FAQ
1. We are an experienced hydraulic parts manufacturer with over 10 years.
2. Our team: customers-focused,you'll get reply within 5-10 minutes.3. Haizhuo: Provide products with good cost performance.
Q:Can I get a sample?
Of course you can,but you may need to pay sample charge which will be returned after formal order signed.
Q:What about Haizhuo delivery term?
10-15 days after final payment received.
Q:What about the payment term?
30%~50%advance payment,70%~50% balance by T/T.
Q: How can I get your pricelist?
Send an enquiry to us,our sales will offer you a free quotation reply within 24 hours.
If you are interested in our products and descriptions, please contact our product specialist. Thank you very much!
