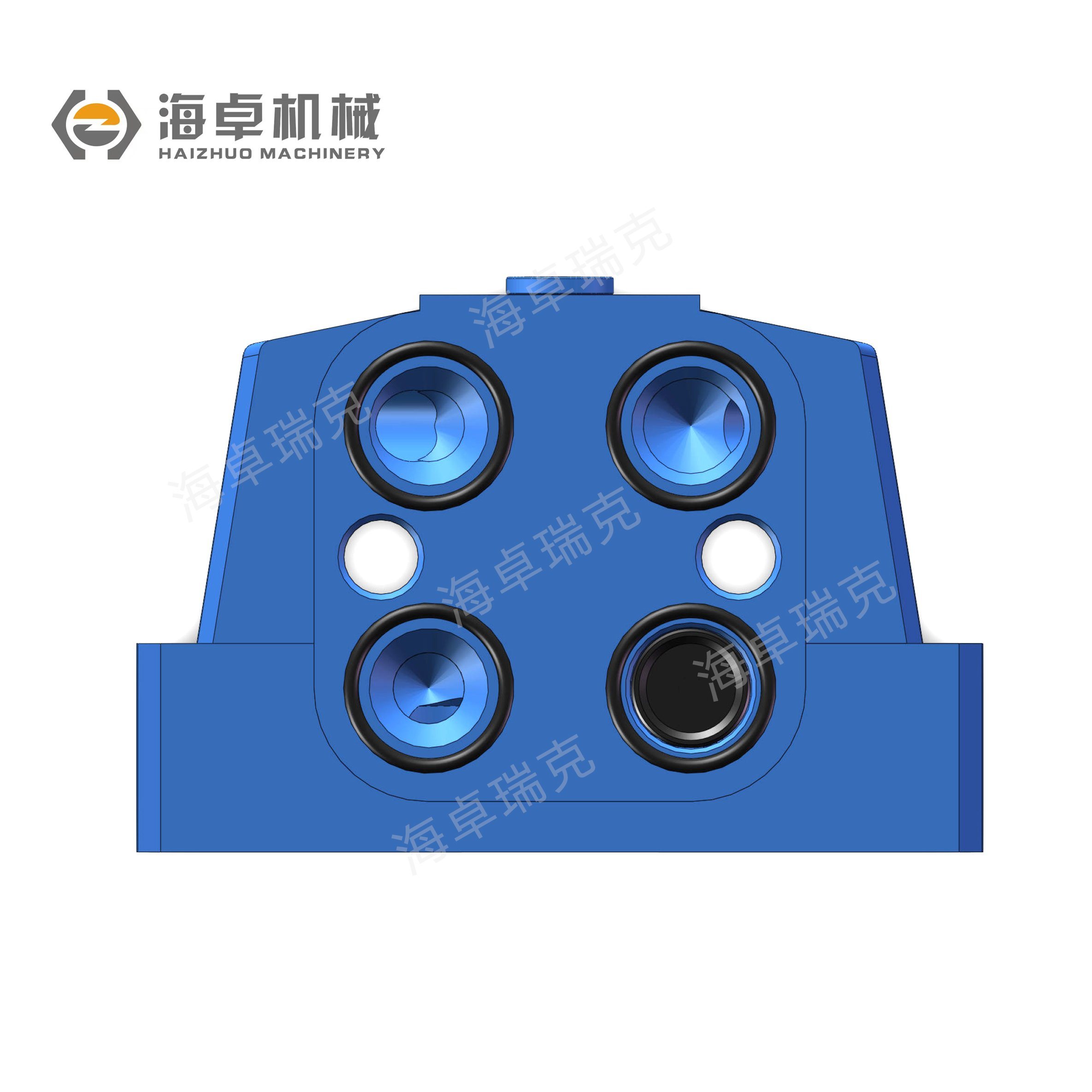

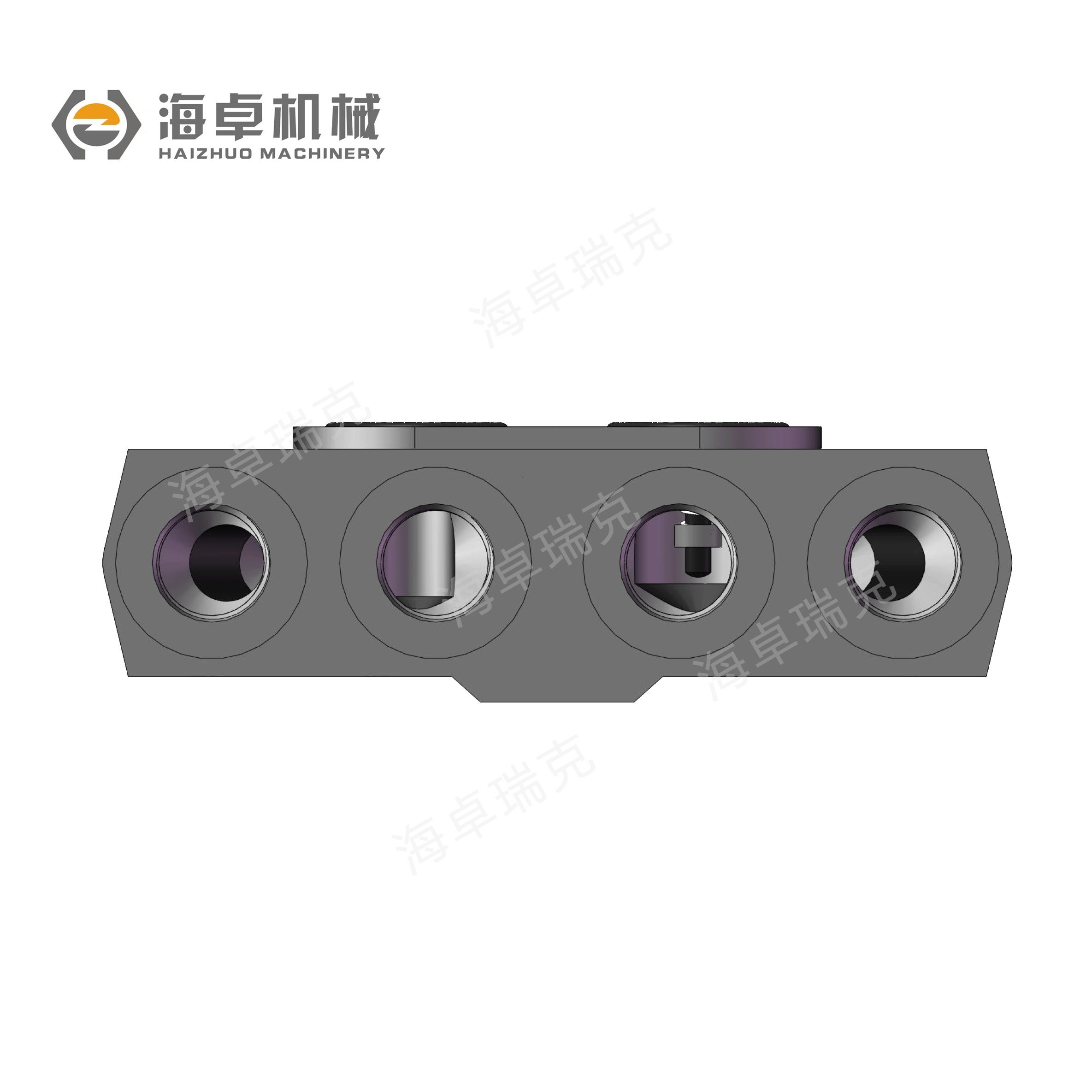

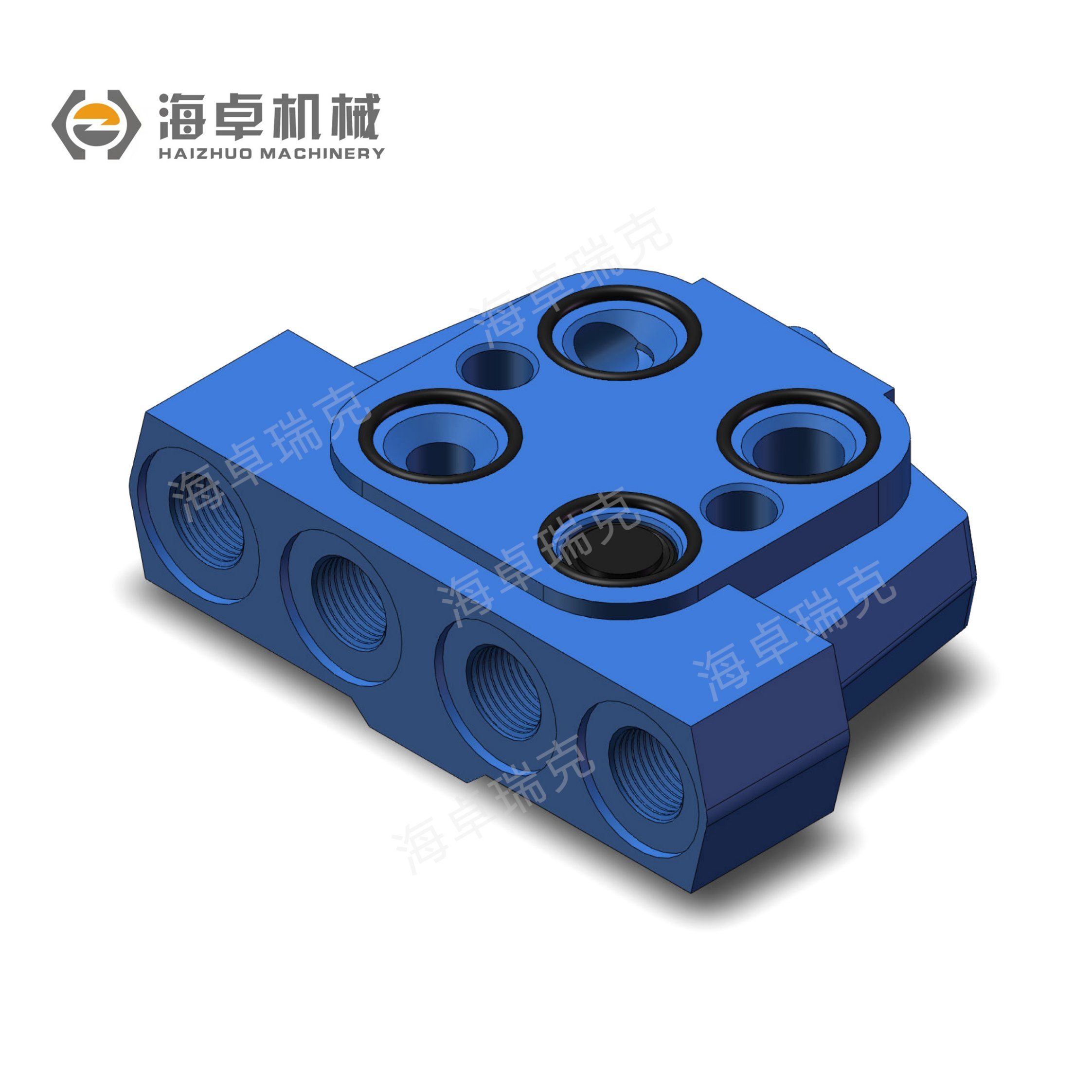

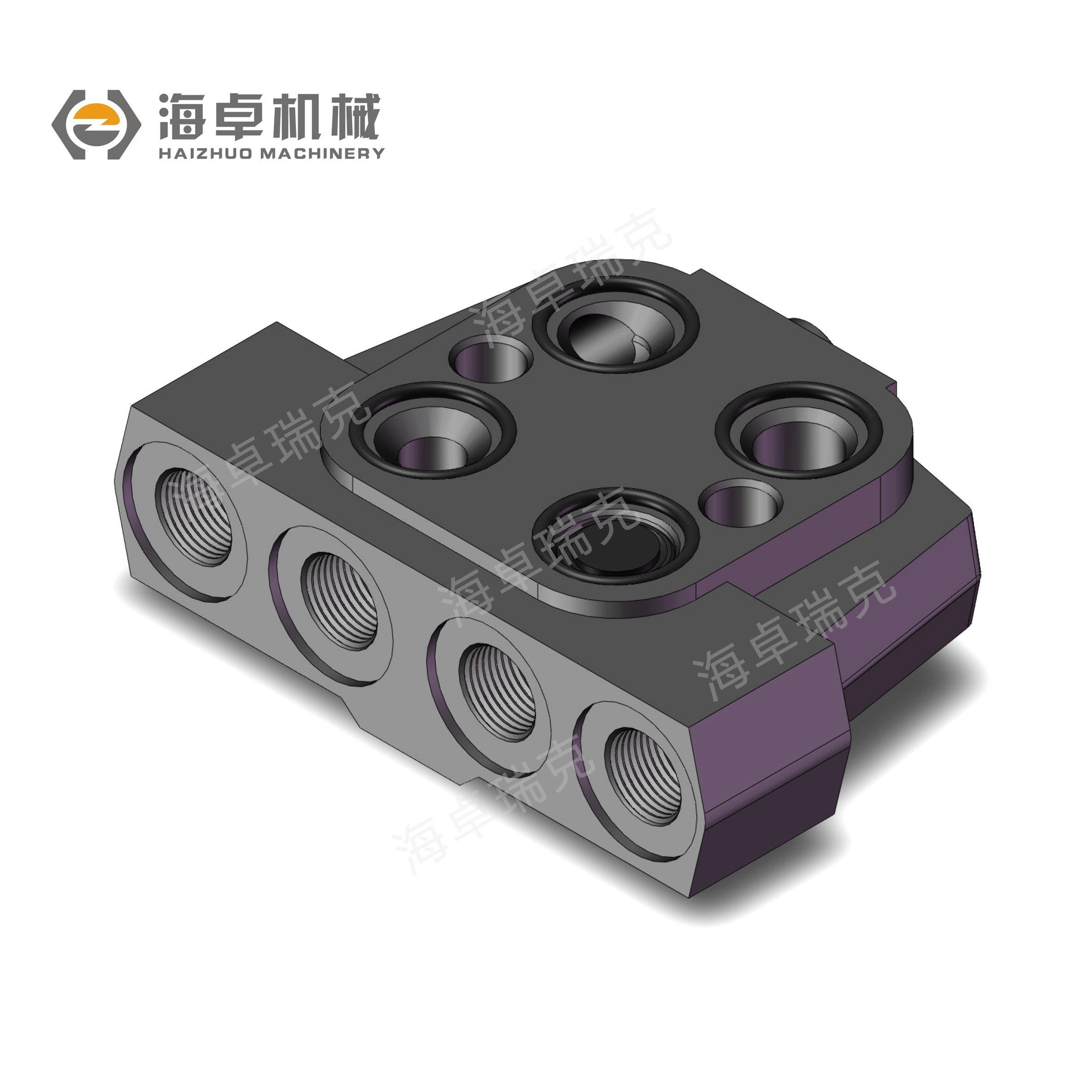

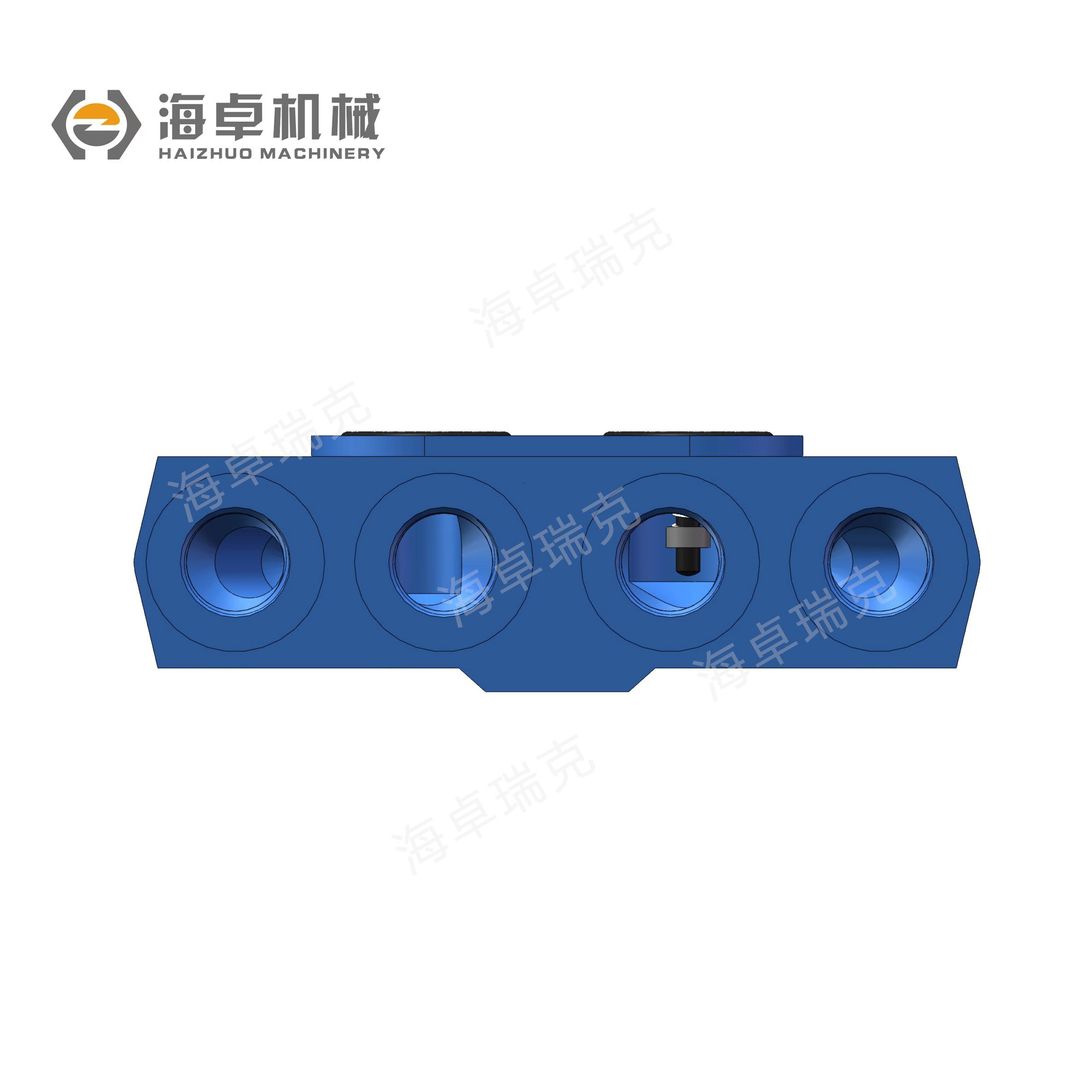

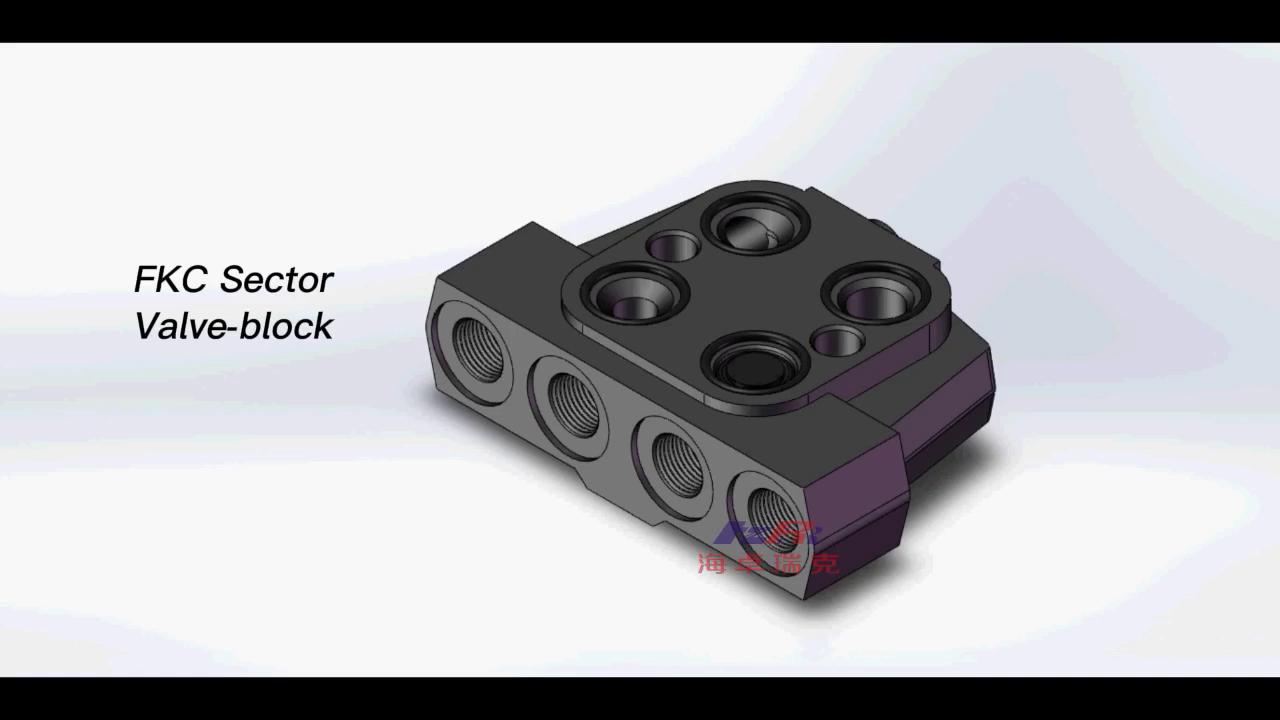

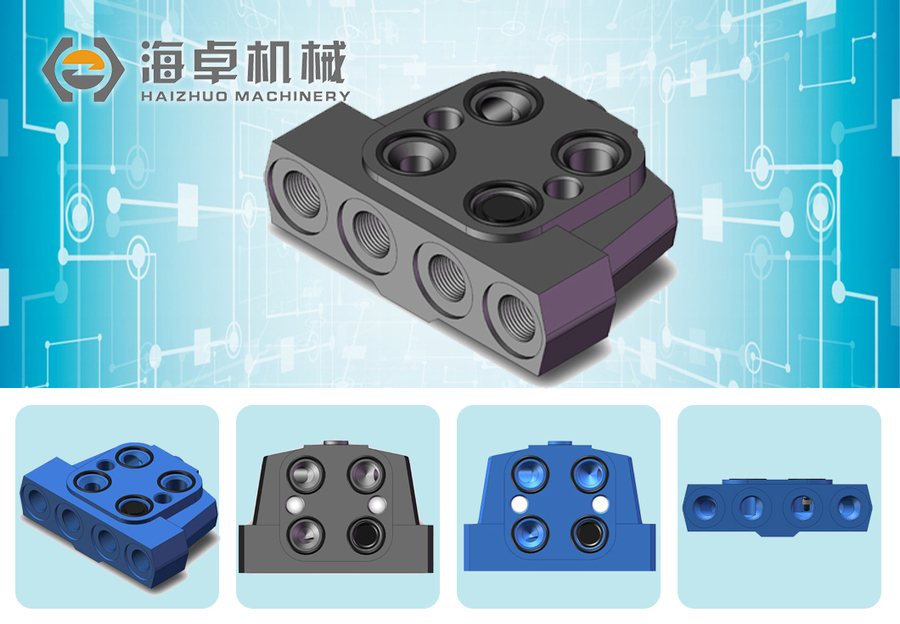

FKC Manifold Block
| FOB Price:US $18-25/Piece (Min. Order 5 Piece ) Sample Price:US $80/Piece (Min. Order 1 Piece ) | |||
| Model No. | FKC(OVR) | Function | Flow Control |
| After-sales Service | Yes | Warranty | 12 Months |
| Installation | Threaded Cartridge | Drive | Hydraulic |
| Type | Directly Operated Type | Applicable Fields | Construction &Mining & Agriculture Machinery |
| Control System | Direct Acting | Customization | Available |
| Join Style | Bolt Connection | Match Type | Bzz1 Type Scu |
| Specification | 25cm*25cm*25cm | HS Code | 8481802990 |
| Origin | Qingzhou Weifang China | Transport Package | Wooden Case & Carton & Foam Board |
| Port of shipment | QingDao | Trademark | haizhuo |
| Production Capacity | 10000 pieces/Year | ||
FK series valve block integrates safety valve,two-way buffer valve, check valve, oil make-up valve and other units. After being assembled with the corresponding steering gear, it is used to control and protect the oil inlet pipeline of the steering system, overload protection of the actuator, oil make-up valve to prevent air suction and check valve to prevent thugs, which can make the whole machine more comfortable and reliable to operate.
The valve block has compact structure and rich functions, and is suitable for two series of bzz1/bzz5 steering gears.
Parameters & Connection
| FKC(OVP) Series Hydraulic Valve Parameters | ||||||
| Oil Port | P | T | A | B | ||
| Item | ||||||
| 1 | Oil Port Size | Model FKA/FKB | M20*1.5-7H | |||
| M20*1.5-7H | M18*1.5-7H | |||||
| G1/2 | ||||||
| Other Specifications | ||||||
| 2 | Sealing Type | Model FKA/FKB | Plane seal | |||
| Cone seal | ||||||
| 3 | Set Pressure | Model FKA | 14 | -- | 20 | 20 |
| 12.5 | -- | 18.5 | 18.5 | |||
| Others | -- | Others | Others | |||
| Model FKB | 0 | -- | 20 | 20 | ||
| 0 | -- | 18.5 | 18.5 | |||
| 0 | -- | Others | Others | |||
| 4 | Inlet Check Valve | Model FKA | √ | √ | √ | √ |
| 5 | Relief Valve | Model FKA | √ | -- | -- | -- |
| Model FKB | -- | -- | -- | |||
| 6 | Two Way Buffer Valve | Model FKA/FKB | -- | -- | √ | √ |
| 7 | Oil Makeup Valve | Model FKA/FKB | -- | -- | √ | √ |
Company Profile
We focus on the design and development of engineering loaders, excavators and agricultural equipment series, nonstandard hydraulic equipment pump valves.
Among them, the most competitive hydraulic pump/ valve/ motor and steering gear have an annual production capacity of 300,000 sets.
Integrate the management concept of HPS lean production into the R & D process, production process, quality monitoring and after-sales service.
We will continue to cooperate effectively with Carter Shangong, Shandong Lingong, Liugong,Longgong and so on! And We also sincerely hope to provide high-quality and low-cost products on the foreign trade platform to friends who are interested in purchasing abroad!
Cooperative Partner
Qualification & Certification
Packaging & Shipping
You can choose the transportion as you need,and the packaging process will be strictly implemented, and the perfect delivery will be ensure to you.
1.The product has high quality and low price, and can be maintained for a long time.
2.Shell castings are provided by high-quality HT/QT/RuT manufacturers to ensure excellent performance.
3.Use environmental water-based paint manipulator for automatic spraying to ensure high-quality appearance.
4.The best hydraulic R & D team in the industry, from the technical process to reassuring security.
FAQ
1. We are an experienced hydraulic parts manufacturer with over 10 years.
2. Our team: customers-focused,you'll get reply within 5-10 minutes.3. Haizhuo: Provide products with good cost performance.
Q:Can I get a sample?
Of course you can,but you may need to pay sample charge which will be returned after formal order signed.
Q:What about Haizhuo delivery term?
10-15 days after final payment received.
Q:What about the payment term?
30%~50%advance payment,70%~50% balance by T/T.
Q: How can I get your pricelist?
Send an enquiry to us,our sales will offer you a free quotation reply within 24 hours.
If you are interested in our products and descriptions, please contact our product specialist. Thank you very much!
