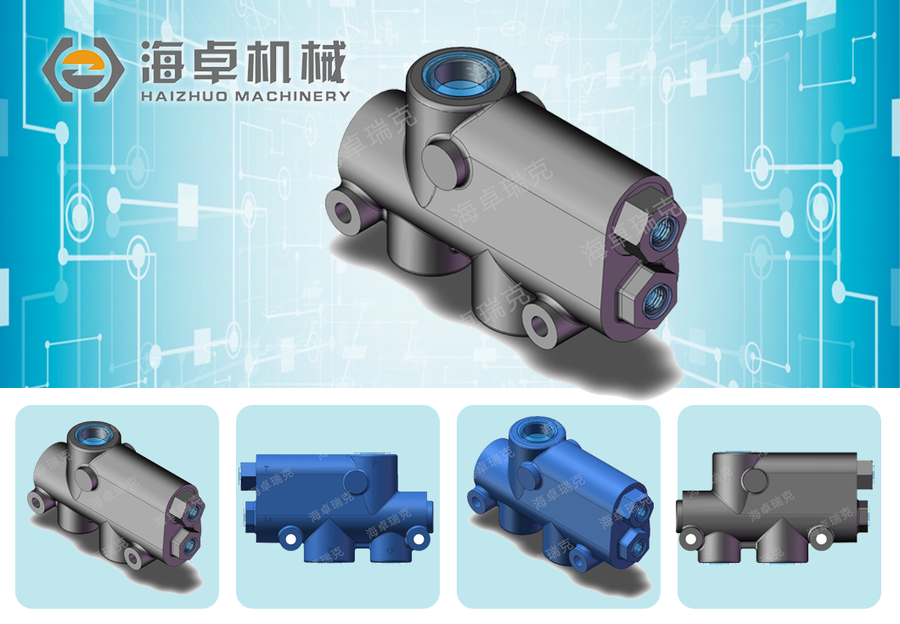

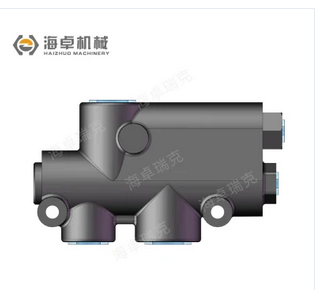

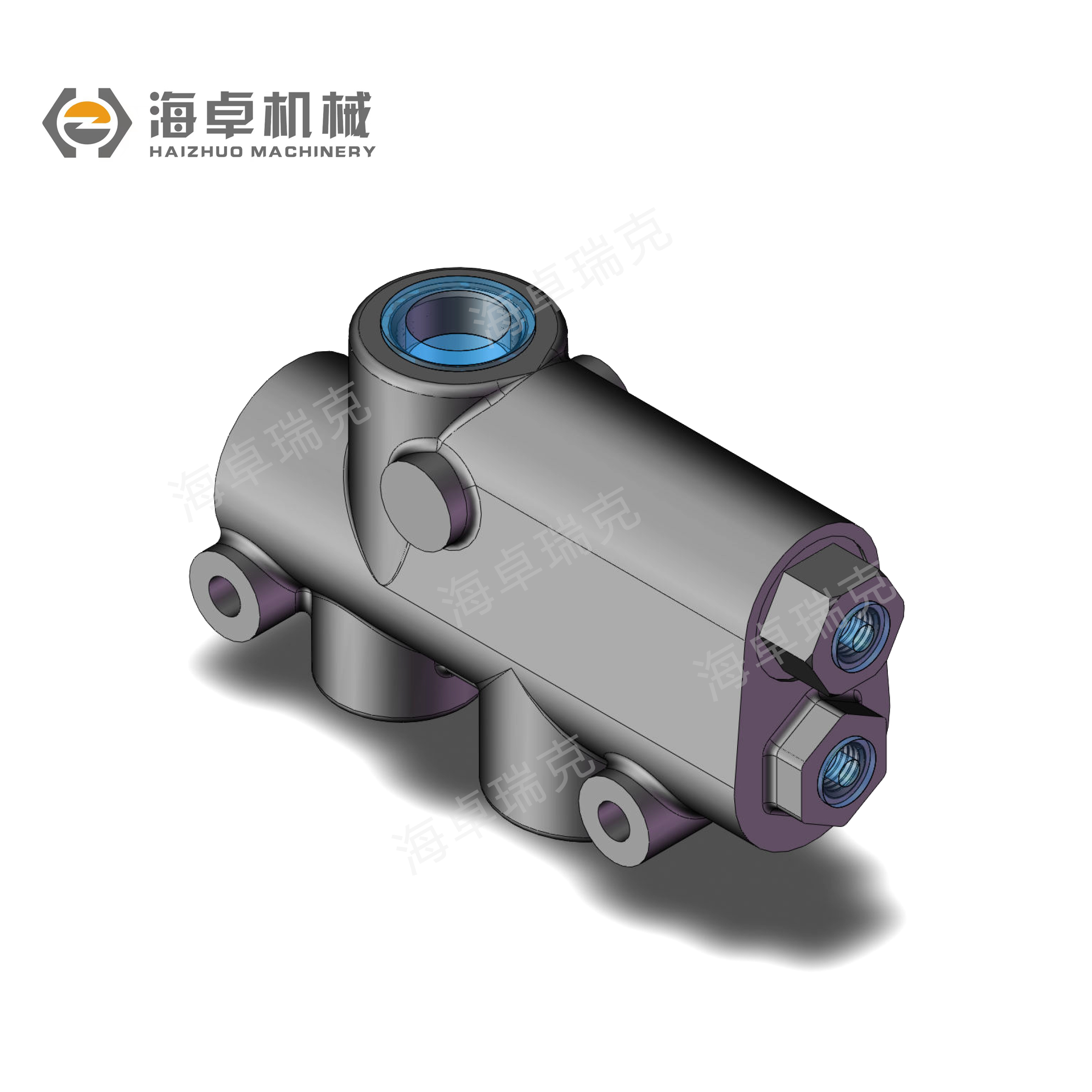

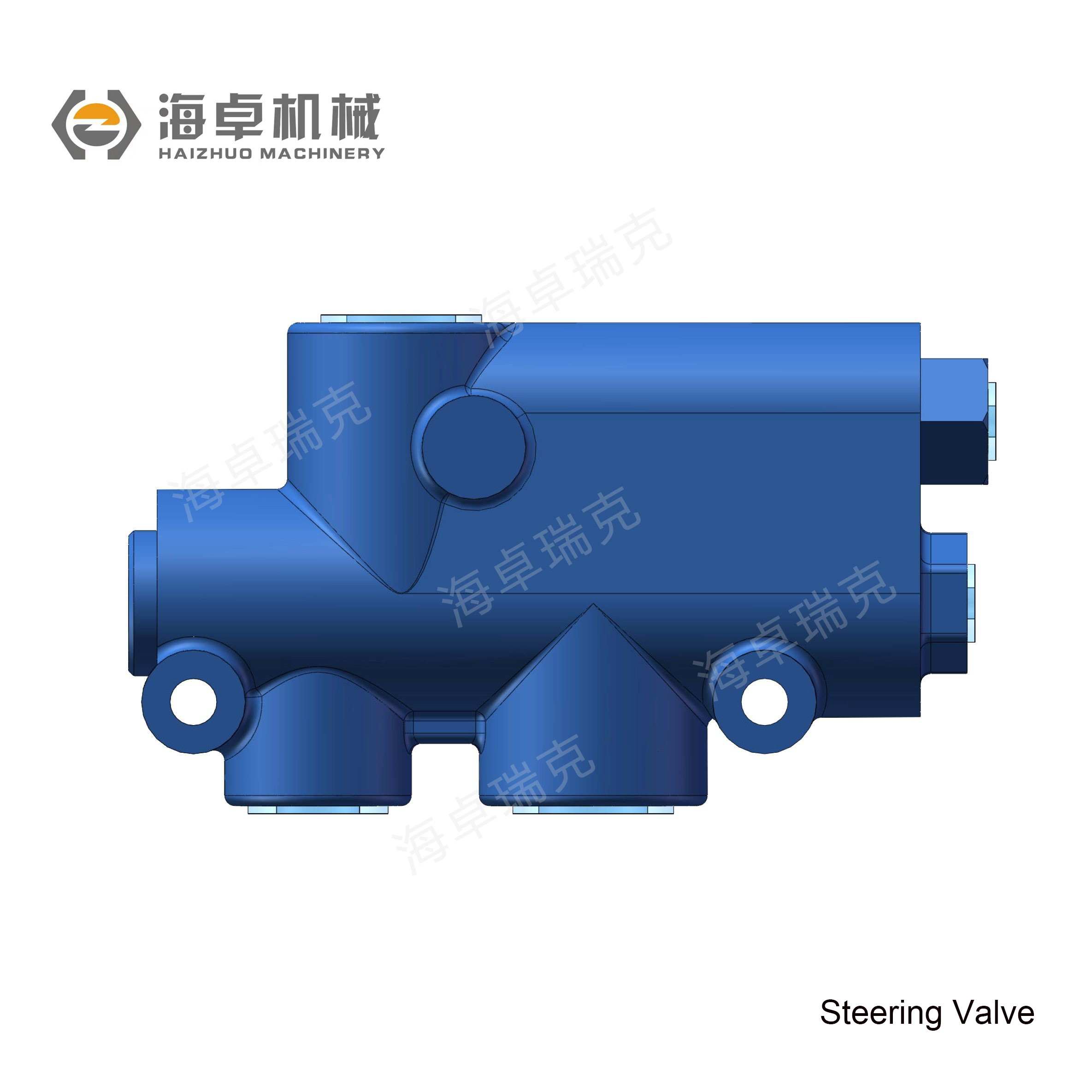

YXL-L160 Priority Valve
| FOB Price:US $20-35/Piece (Min. Order 5 Piece ) Sample Price:US $80/Piece | |||
| Model No. | YXL160 | Applicable Fields | Construction &Mining &Agriculture Machinery |
| After-sales Service | Yes | Warranty | 12 Months |
| Control System | Load Sensing | Nominal Flow | 160L/Min |
| Specification | 30cm*15cm*15cm | HS Code | 8481802990 |
| Origin | Qingzhou Weifang China | Transport Package | Wooden Case & Carton & Foam Board |
| Port of shipment | QingDao | Trademark | haizhuo |
| Production Capacity | 50000 pieces/Year | Customization | Available |
The BZZ160/250 series priority flow control valve, together with the bzz5 load sensing full pressure steering gear, forms the loader full hydraulic steering system. When the steering gear speed changes or the system load changes, it can give priority to the flow required for steering to the steering gear to meet the steering performance requirements of the main engine. It is commonly used in common pump shunt system and is an energy-saving and consumption reducing product.
It is widely used in the hydraulic steering system of loaders, forklifts, graders, combine harvesters, wood handlers, heavy trucks, large tractors and other low-speed vehicles.

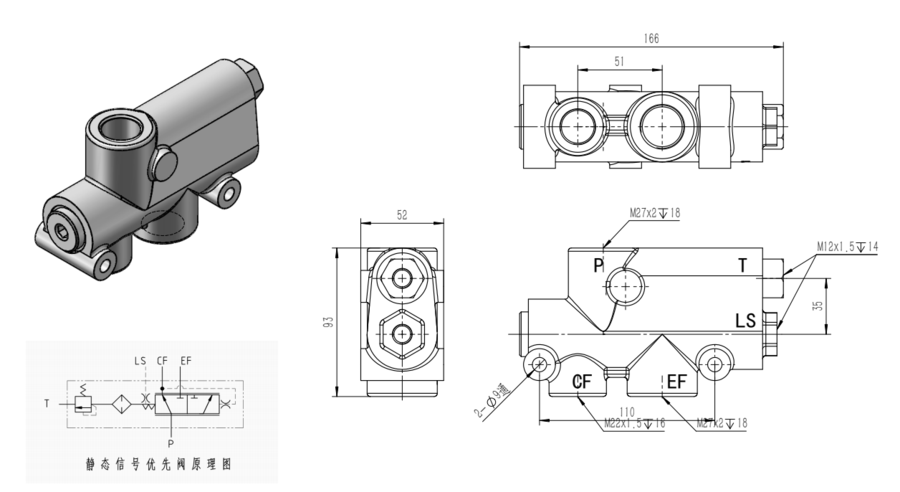

Parameters & Connection
| Technical Parameters of YXL-F250/160 Priority Valve | ||||||||
| Model | Control Pressure(MPa) | Maximum Inlet Flow (L/min) | Maximum Inlet Pressure(MPa) | Steering Relief Valve set Pressure(MPa) | Oil Port Connection Mode | Control Mode | Application | |
| L | F | |||||||
| YXL-F160L- 0.45 | 0.45 | 160 | 20 | 6.3~1.6 (Set According to User Requirements) | √ | N | ZL50 Wheel loader/4T/5T Wood clamping machine | |
| YXL-F160L- 0.7 | 0.7 | √ | ||||||
| YXL-F160L- 1.05 | 1.05 | √ | ||||||
| YXL-F250L- 0.7 | 0.7 | 250 | √ | N | ||||
| YXL-F250L- 1.05 | 1.05 | √ | ||||||
Company Profile
We focus on the design and development of engineering loaders, excavators and agricultural equipment series, nonstandard hydraulic equipment pump valves.
Among them, the most competitive hydraulic pump/ valve/ motor and steering gear have an annual production capacity of 300,000 sets.
Integrate the management concept of HPS lean production into the R & D process, production process, quality monitoring and after-sales service.
We will continue to cooperate effectively with Carter Shangong, Shandong Lingong, Liugong,Longgong and so on! And We also sincerely hope to provide high-quality and low-cost products on the foreign trade platform to friends who are interested in purchasing abroad!
Cooperative Partner
Qualification & Certification
Packaging & Shipping
You can choose the transportion as you need,and the packaging process will be strictly implemented, and the perfect delivery will be ensure to you.
1.The product has high quality and low price, and can be maintained for a long time.
2.Shell castings are provided by high-quality HT/QT/RuT manufacturers to ensure excellent performance.
3.Use environmental water-based paint manipulator for automatic spraying to ensure high-quality appearance.
4.The best hydraulic R & D team in the industry, from the technical process to reassuring security.
