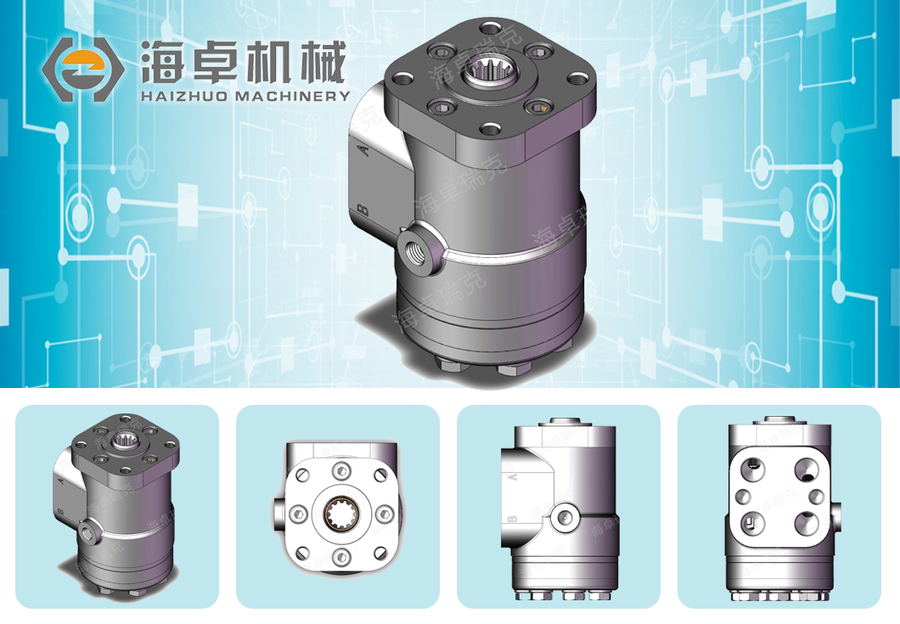

BZZ5 Small Displacement Steering Unit
| FOB Price:US $40-55/Piece (Min. Order 1 Piece ) Samples: US$ 80/Piece (Min.Order 1 Piece) | |||
| Model No. | BZZ5 | Material | Cast Iron |
| After-sales Service | Yes | Warranty | 12 Months |
| Port of shipment | QingDao | Condition | New |
| Application | Wheel Loader & Agriculture Machine | Type | Steering Unit |
| External Connection | Internal Spline | Applicable Field | Load Sensing Steering System |
| Displacement | 50,63,80,100,125,160 ml/r | User Selection | Oil Port, External Connection and Spraying Color |
| Customization | Available | Trademark | Haizhuo |
| Origin | Qingzhou Weifang China | HS Code | 8481802990 |
| Specification | 25cm*15cm*15cm | Transport Package | Wooden Case & Carton & Foam Board |
| Production Capacity | 45000pieces/Year | ||
The front cover is connected with the housing by bolts. The external valve block comprises a safety valve, a two-way buffer valve and an oil inlet one-way valve, and the safety valve, the two-way buffer valve and the oil inlet one-way valve are connected with the main valve body through bolts;
The set pressure of valve block overflow valve can be set according to customer requirements; It can also be used without valve block;
The connection form with the steering column is long run connection, B includes SAE internal spline, and C-type short rung connection; Ls port is a load sensing port, which is connected with yxl-160 priority valve.
Connect to realize priority steering, and merge with the working system when not steering, so as to realize the effect of energy saving and consumption reduction;
Widely used in tractors, combine harvesters, forklifts and other agricultural machinery.

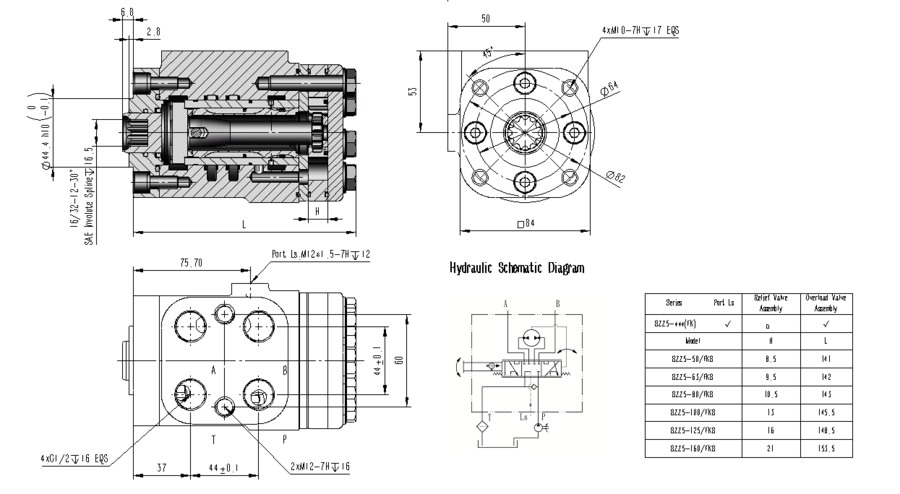

Parameters & Connection
| Technical Parameter of Series BZZ5 Small Displacement Scu | ||||
| Project | Parameter | Project | Parameter | |
| Product code | 2003020201~2003020206 | Maximum power steering torque(N.m) | ≤1.5~1.9 | |
| Model | BZZ5-50,63,80,100,125,160 | Maximum Turning speed(rpm) | 60 | |
| Displacement(ml/r) | 50,63,80,100,125,160 | Set pressure of safety valve(MPa) | __ | |
| Maximum inlet pressure(MPa) | 16 | Setting pressure of two-way buffer valve (MPa) | 18.5 | |
Maximum continuous back pressure(MPa) | 1.6 | Connection Type | Front end | A:Long cross quick B"Short cross quick C:SAE Internal spline |
| Oil Port | Thread of DIN,ISO,SAE or JIS Standards | |||
Company Profile
We focus on the design and development of engineering loaders, excavators and agricultural equipment series, nonstandard hydraulic equipment pump valves.
Among them, the most competitive hydraulic pump/ valve/ motor and steering gear have an annual production capacity of 300,000 sets.
Integrate the management concept of HPS lean production into the R & D process, production process, quality monitoring and after-sales service.
We will continue to cooperate effectively with Carter Shangong, Shandong Lingong, Liugong,Longgong and so on! And We also sincerely hope to provide high-quality and low-cost products on the foreign trade platform to friends who are interested in purchasing abroad!
Cooperative Partner
Qualification & Certification
Packaging & Shipping
You can choose the transportion as you need,and the packaging process will be strictly implemented, and the perfect delivery will be ensure to you.
1.The product has high quality and low price, and can be maintained for a long time.
2.Shell castings are provided by high-quality HT/QT/RuT manufacturers to ensure excellent performance.
3.Use environmental water-based paint manipulator for automatic spraying to ensure high-quality appearance.
4.The best hydraulic R & D team in the industry, from the technical process to reassuring security.
FAQ
1. We are an experienced hydraulic parts manufacturer with over 10 years.
2. Our team: customers-focused,you'll get reply within 5-10 minutes.3. Haizhuo: Provide products with good cost performance.
Q:Can I get a sample?
Of course you can,but you may need to pay sample charge which will be returned after formal order signed.
Q:What about Haizhuo delivery term?
10-15 days after final payment received.
Q:What about the payment term?
30%~50%advance payment,70%~50% balance by T/T.
Q: How can I get your pricelist?
Send an enquiry to us,our sales will offer you a free quotation reply within 24 hours.
If you are interested in our products and descriptions, please contact our product specialist. Thank you very much!
