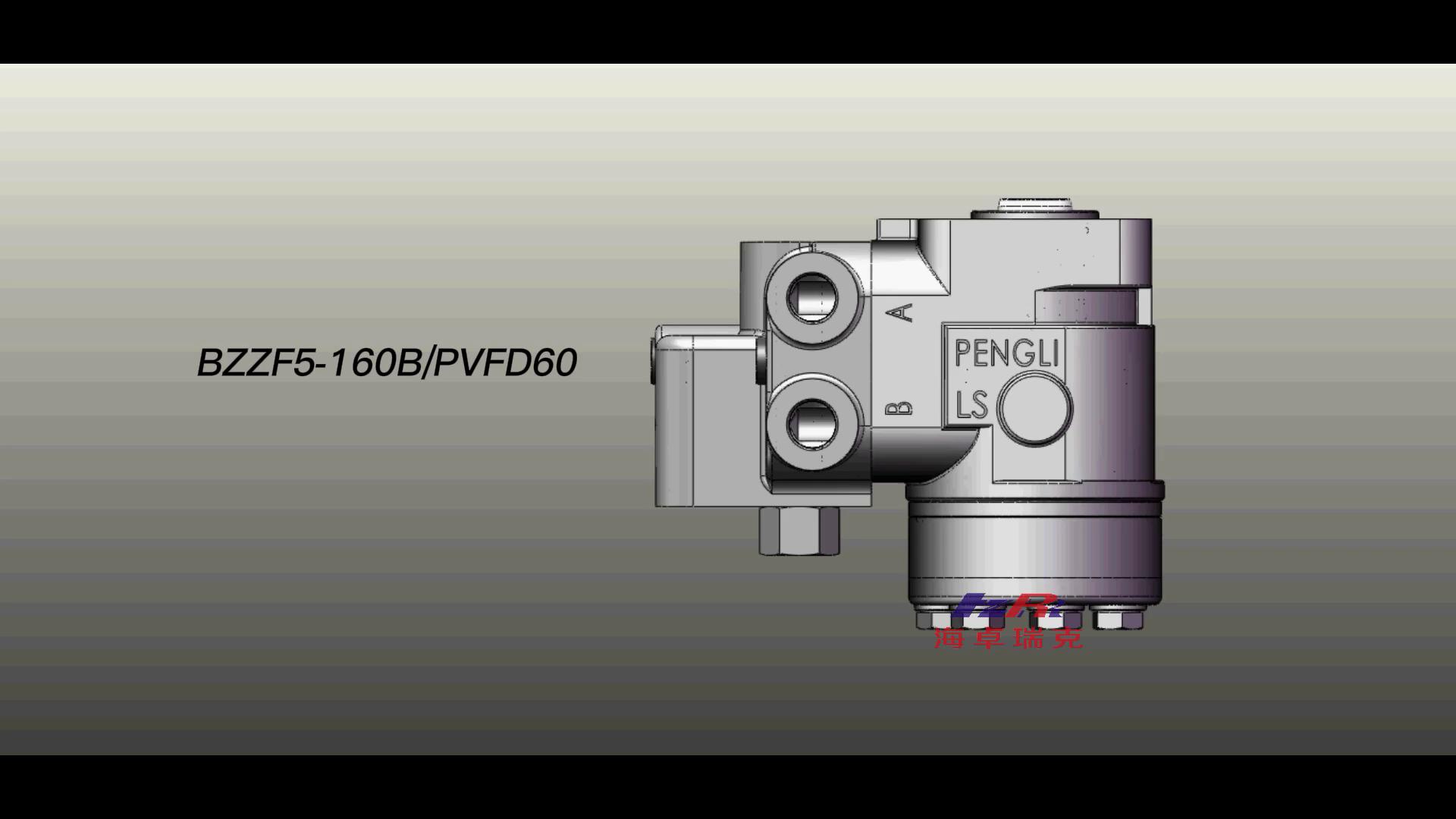

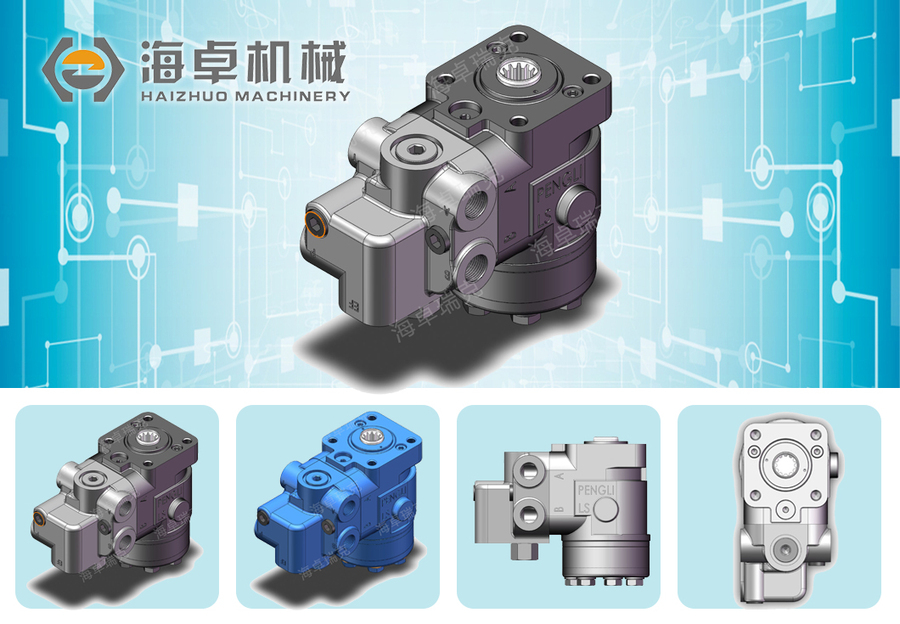

BzzF5-160b/PV60 Direct Coupled Hydraulic Steering Unit
| FOB Price:US $80-88/Piece (Min. Order 1 Piece ) Samples: US$ 99/Piece (Min.Order 1 Piece) | |||
| Model No. | BZZF5-160B/PV60 | Material | Cast Iron |
| After-sales Service | Yes | Warranty | 12 Months |
| Certification | CE, ISO9001 | Condition | New |
| Pressure | High Pressure | Work Temperature | -20~100ºC |
| Model of PV Priority Valve | 60 | Media | Oil |
| External Connection | Internal Spline & Internal Thread | Application System | Load Sensing Steering System |
| Application | Electric Small Machinery | Type | Steering Unit |
| Displacement | 160ml/R | User Selection | Oil Port, External Connection and Spraying Color |
| Customization | Available | Trademark | Haizhuo |
| Origin | Qingzhou Weifang China | HS Code | 8481802990 |
| Specification | 25cm*15cm*15cm | Transport Package | Wooden Case & Carton & Foam Board |
| Production Capacity | 10000pieces/Year | Port of shipment | QingDao |

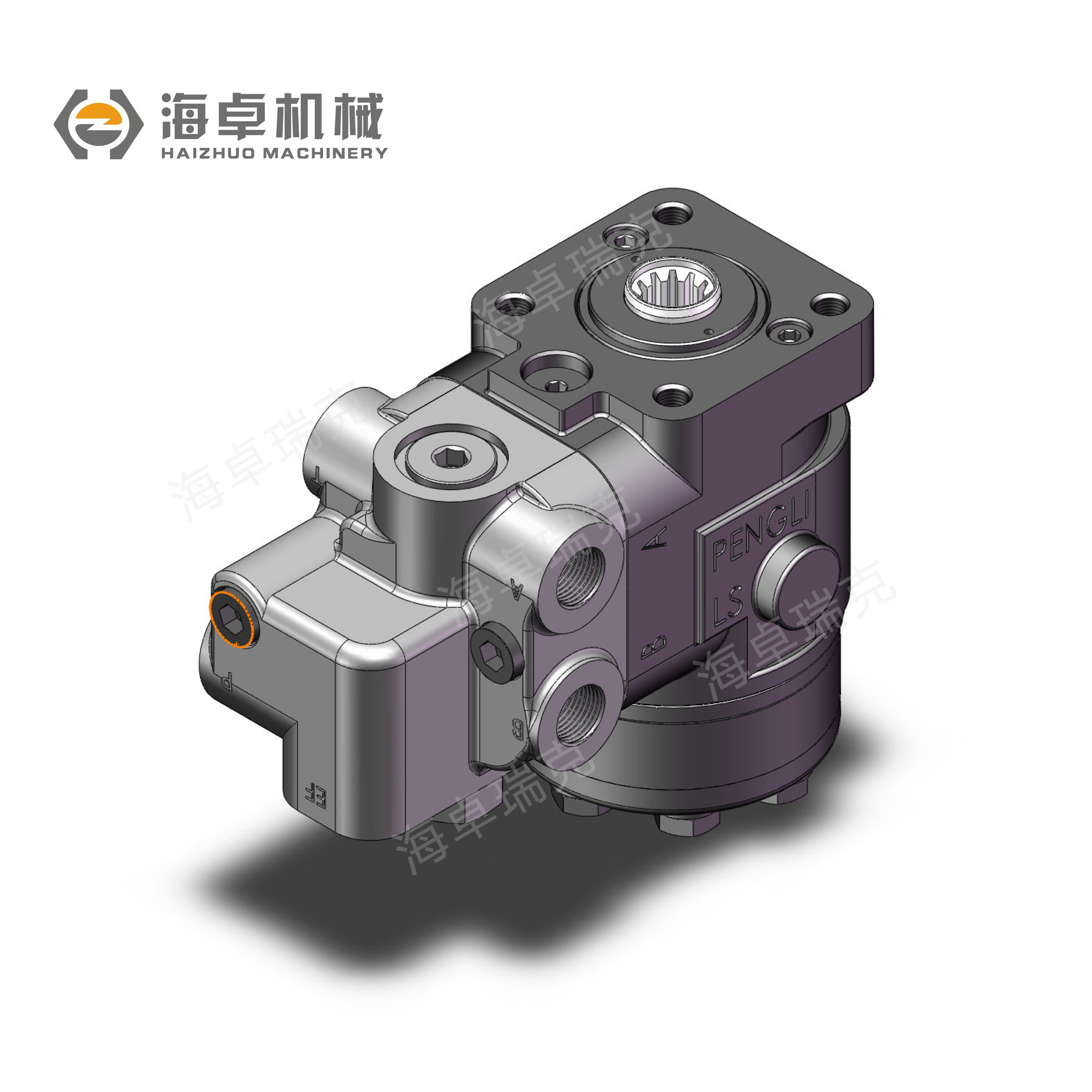

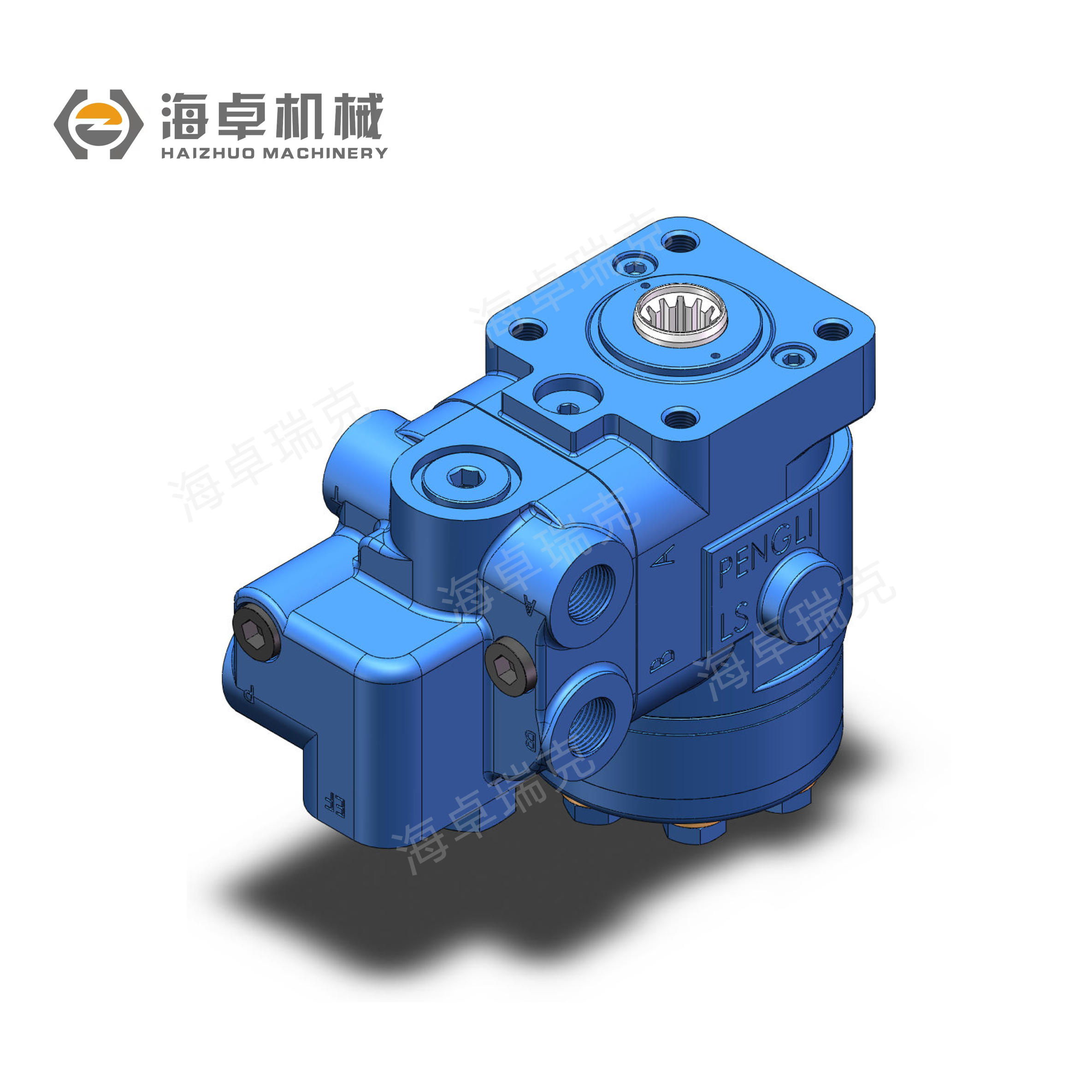

Ospc on 160b/PV60(Bzz5/pv60b) direct connecte steering gear directly connects the priority valve with the oil port of the steering gear by bolts. The load signal transmission of this steering gear does not need pipeline connection, and the structure is compact, reducing pipeline oil leakage and pressure loss.
Hydraulic steering unit is widely used in the steering control system, such as the steering system of many kinds of industrial and agricultural, mobile machinery, forklift, loader, roadroller, tractor, comebine harvester, etc.
Parameters & Connection
| Technical Parameter of Ospc on 160b/PV60(BZZF5-***/PVD60B) | |||
| Project | Parameter | Project | Parameter |
| BZZF5-***steering unit | |||
| Product code | 2003030201~06 | Maximum power steering torque(N.m) | ≤1.6 |
| Model | BZZF5-50,63,80,100,125,160,200 | Maximum speed(rpm) | 60 |
| Displacement(ml/r) | 50,63,80,100,125,160,200 | Set pressure of safety valve (MPa) | 12.5 |
| Maximum inlet pressure(MPa) | 16 | Setting pressure of two-way buffer valve(MPa) | 18.5 |
Maximum continuous back pressure(MPa) | 1.6 | ||
| PV60 priotity valve | |||
| Input pressure Max(MPa) | 20 | Oil port connection type | Thread of Plane seal and angle seal |
| Input flow Max (L/min) | 60 | Load sensing type | Dynamic & static |
