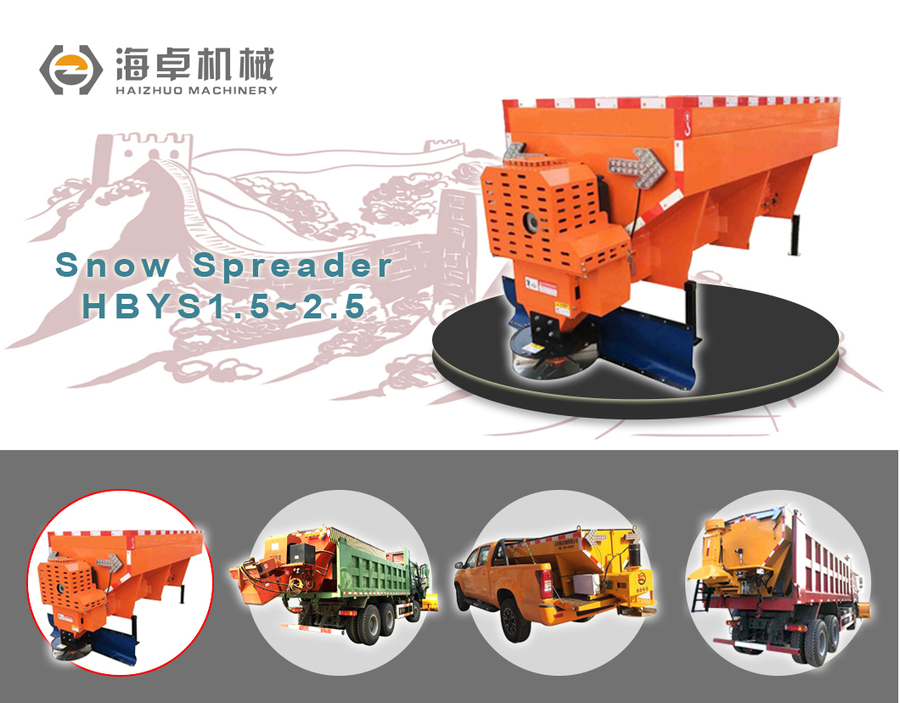

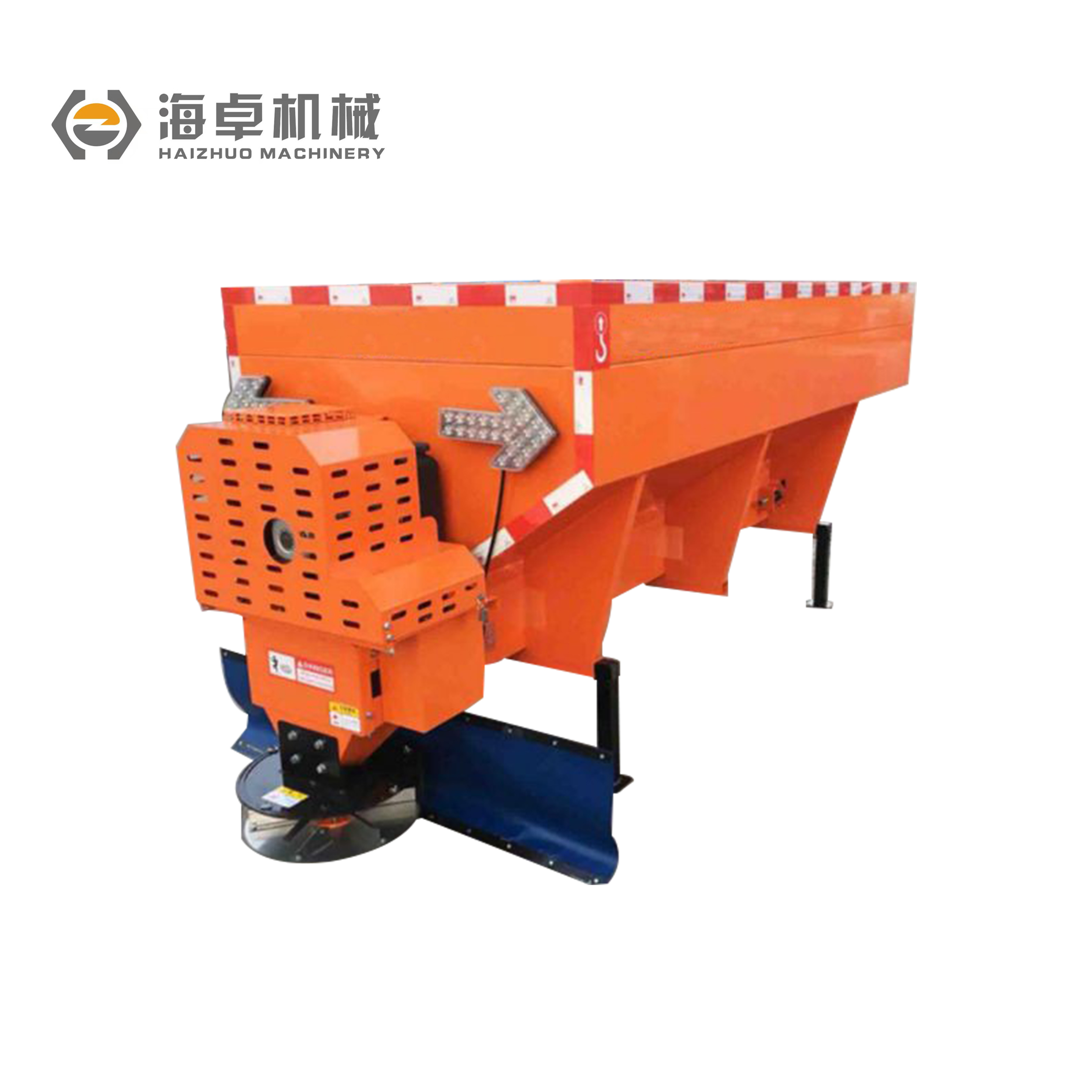

HBYS Snow Spreader
| FOB Price:US $1800-3000/Piece (Min. Order 1 Piece ) | |||
| Model No. | HBYS | Customization | Available |
| After-sales Service | Yes | Warranty | 12 Months |
| Power Source | with The Help of Connecting The Main Engine Power | External Connection | Truck′s Hydraulic System Refit |
| Throwing Width(M) | >16 | Box Volume(M3) | 1-12 |
| DIY Item | Product Color, Connection and Auxiliary Functions | Production Capacity | 100sets/Year |
| Specification | Match according to customized size | Trademark | haizhuo |
| Origin | Qingzhou Weifang China | Transport Package | Welding Support |
| Port of shipment | QingDao | HS Code | 8430200000 |

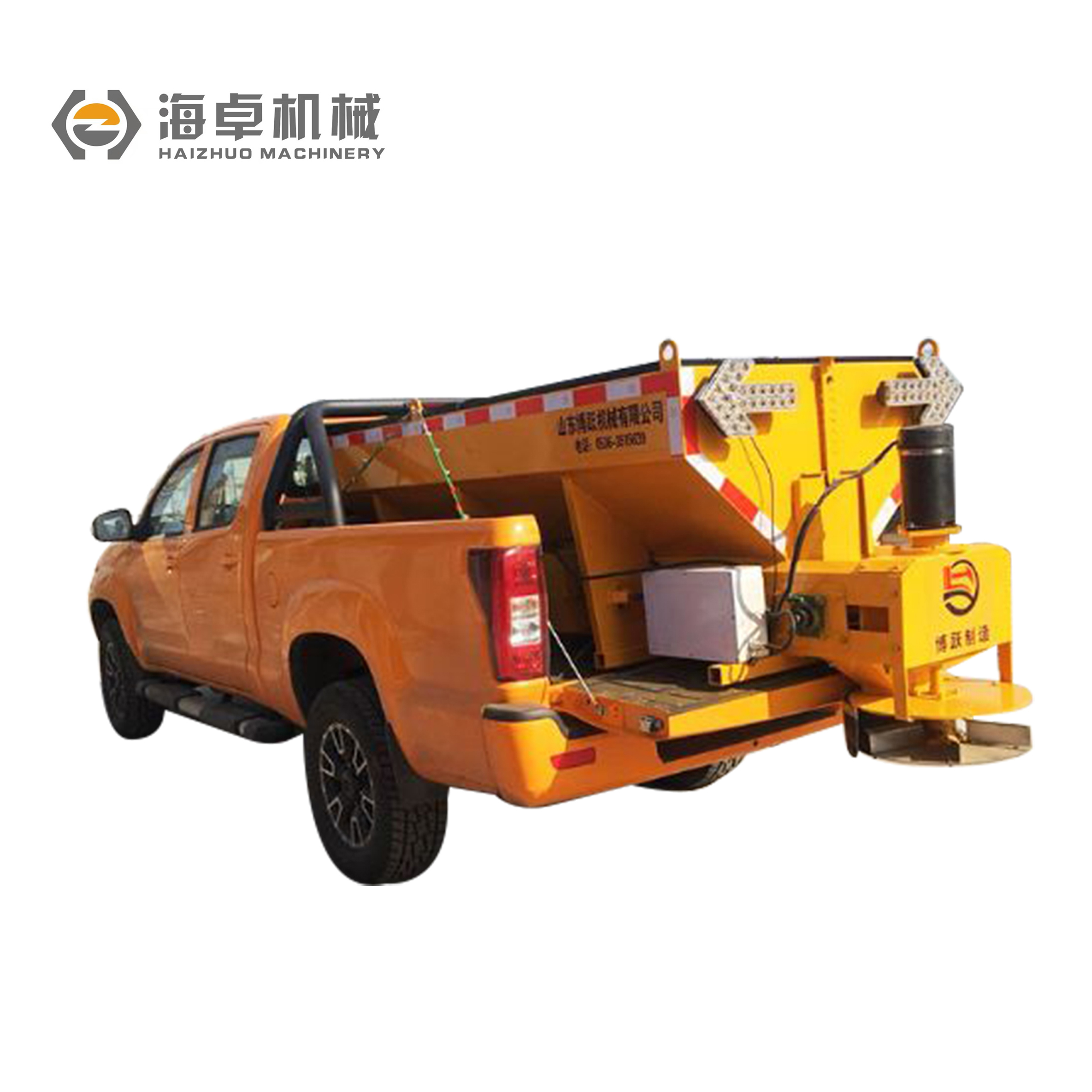

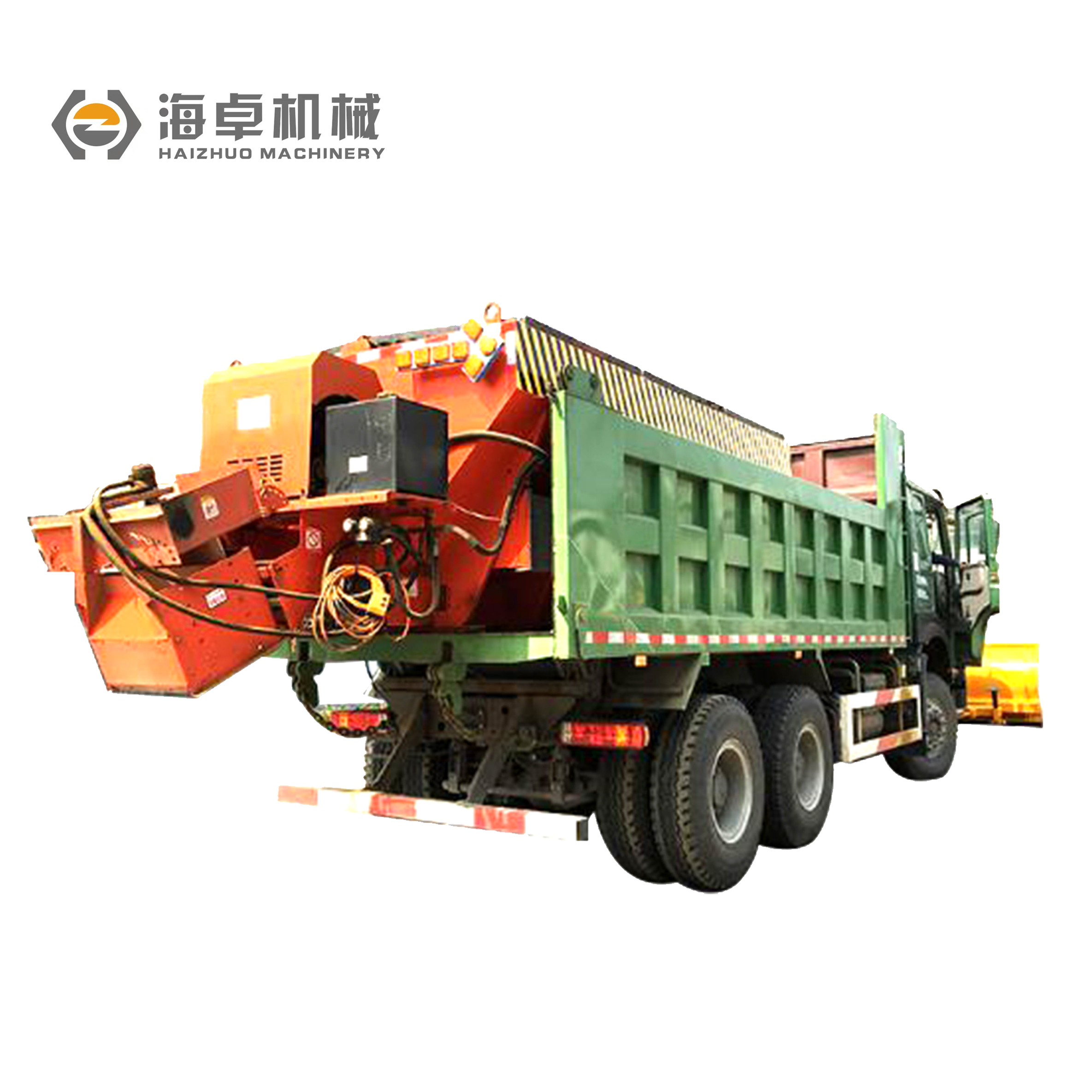

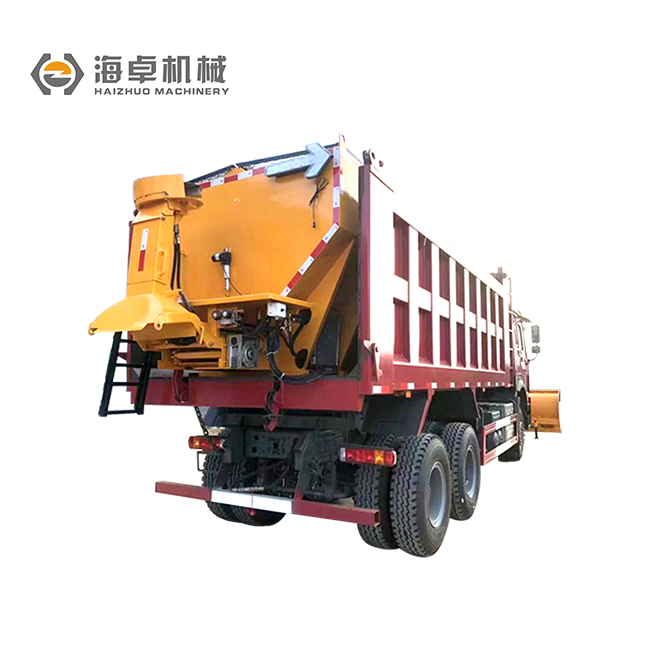

The spreader is fixed in the truck compartment for the
distribution of solid snow melting agent on the road.
The spreader can be driven by vehicle power, or it's own power. [two configurations]
The hydraulic motor drives the stirring cage to deliver the snow melting agent to the rear distribution mechanism,and the distribution motor drives the distribution tray to throw the snow melting agent onto the road. The motor speed is adjustable.
The top of the silo is equipped with a screen, and the imitation caked snow melting agent enters the silo,causing blockage.Parameters & Connection
| Technical Parameters of HBYS Series Snow Spreader | |||
| No. | Project | Parameter value | Note |
| 1 | Box Volume(m3) | 1~12 | Customizable |
| 2 | Cabinet material | 304 stainless steel/Carbon steel assembly welding | |
| 3 | Auger material | 304 stainless steel | Or chain structure |
| 4 | engine | Lc2v (19kw gasoline) | use the truck's power |
| 5 | control mode | wire or Wireless remote control | |
| 6 | System pressure (MPa) | 16 | |
| 7 | Motor model | BM5-50/160 | |
| 8 | Hydraulic Pump | CBN14/14 Duplex pump | |
| 9 | Solenoid Valve | 6D/12V | |
| 10 | Throwing width(m) | <16 | |
| 11 | Driving speed(Km/h) | >30 | |
| 12 | Power source | Connected to the trucks | |
Company Profile
We focus on the design and development of engineering loaders, excavators and agricultural equipment series, nonstandard hydraulic equipment pump valves.
Among them, the most competitive hydraulic pump/ valve/ motor and steering gear have an annual production capacity of 300,000 sets.
Integrate the management concept of HPS lean production into the R & D process, production process, quality monitoring and after-sales service.
We will continue to cooperate effectively with Carter Shangong, Shandong Lingong, Liugong,Longgong and so on! And We also sincerely hope to provide high-quality and low-cost products on the foreign trade platform to friends who are interested in purchasing abroad!
Cooperative Partner
Qualification & Certification
Packaging & Shipping
You can choose the transportion as you need,and the packaging process will be strictly implemented, and the perfect delivery will be ensure to you.
1.The product has high quality and low price, and can be maintained for a long time.
2.Shell castings are provided by high-quality HT/QT/RuT manufacturers to ensure excellent performance.
3.Use environmental water-based paint manipulator for automatic spraying to ensure high-quality appearance.
4.The best hydraulic R & D team in the industry, from the technical process to reassuring security.
FAQ
1. We are an experienced hydraulic parts manufacturer with over 10 years.
2. Our team: customers-focused,you'll get reply within 5-10 minutes.3. Haizhuo: Provide products with good cost performance.
Q:Can I get a sample?
Of course you can,but you may need to pay sample charge which will be returned after formal order signed.
Q:What about Haizhuo delivery term?
10-15 days after final payment received.
Q:What about the payment term?
30%~50%advance payment,70%~50% balance by T/T.
Q: How can I get your pricelist?
Send an enquiry to us,our sales will offer you a free quotation reply within 24 hours.
If you are interested in our products and descriptions, please contact our product specialist. Thank you very much!
total 0 Sheet，Only 5 images can be uploaded, each less than 5m.
