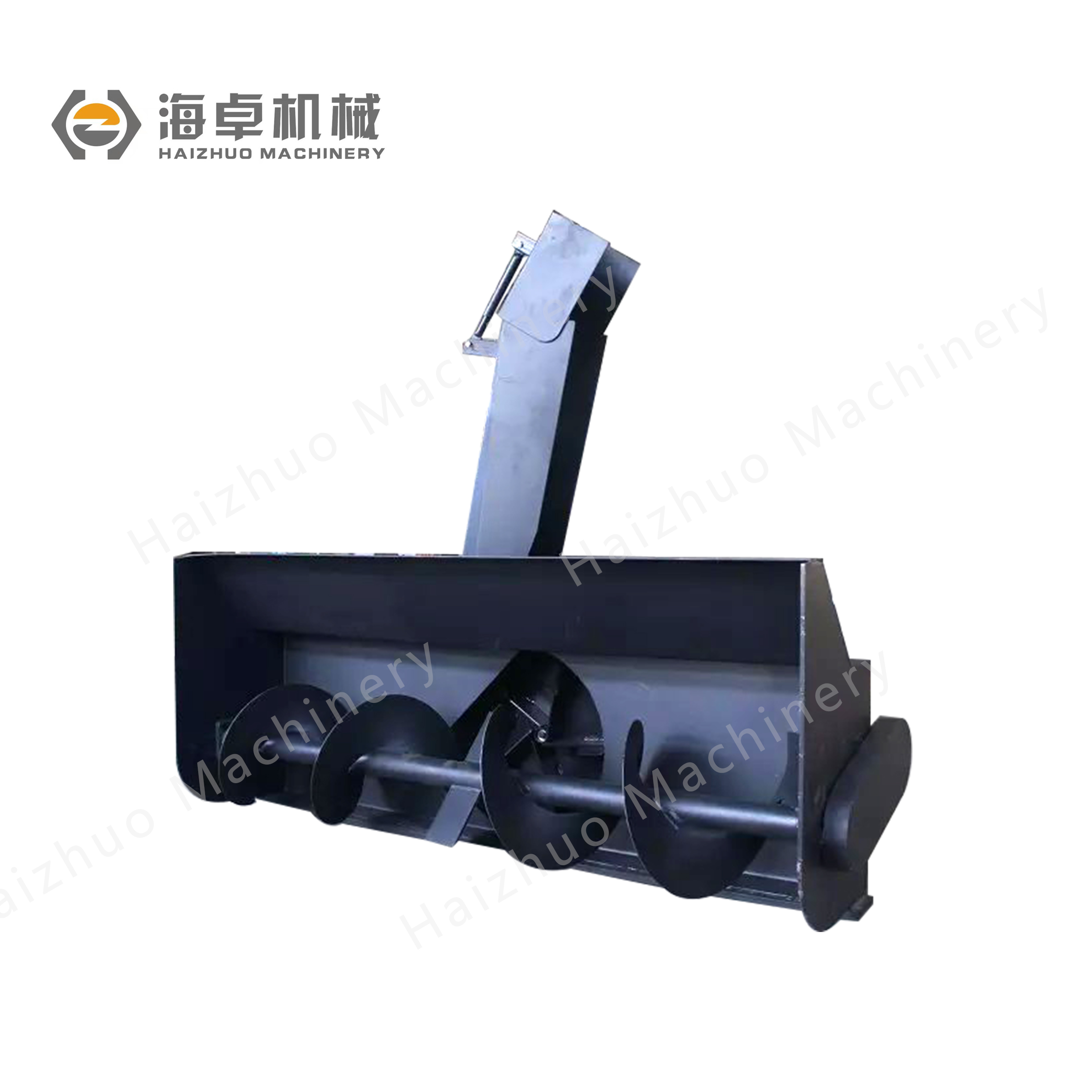

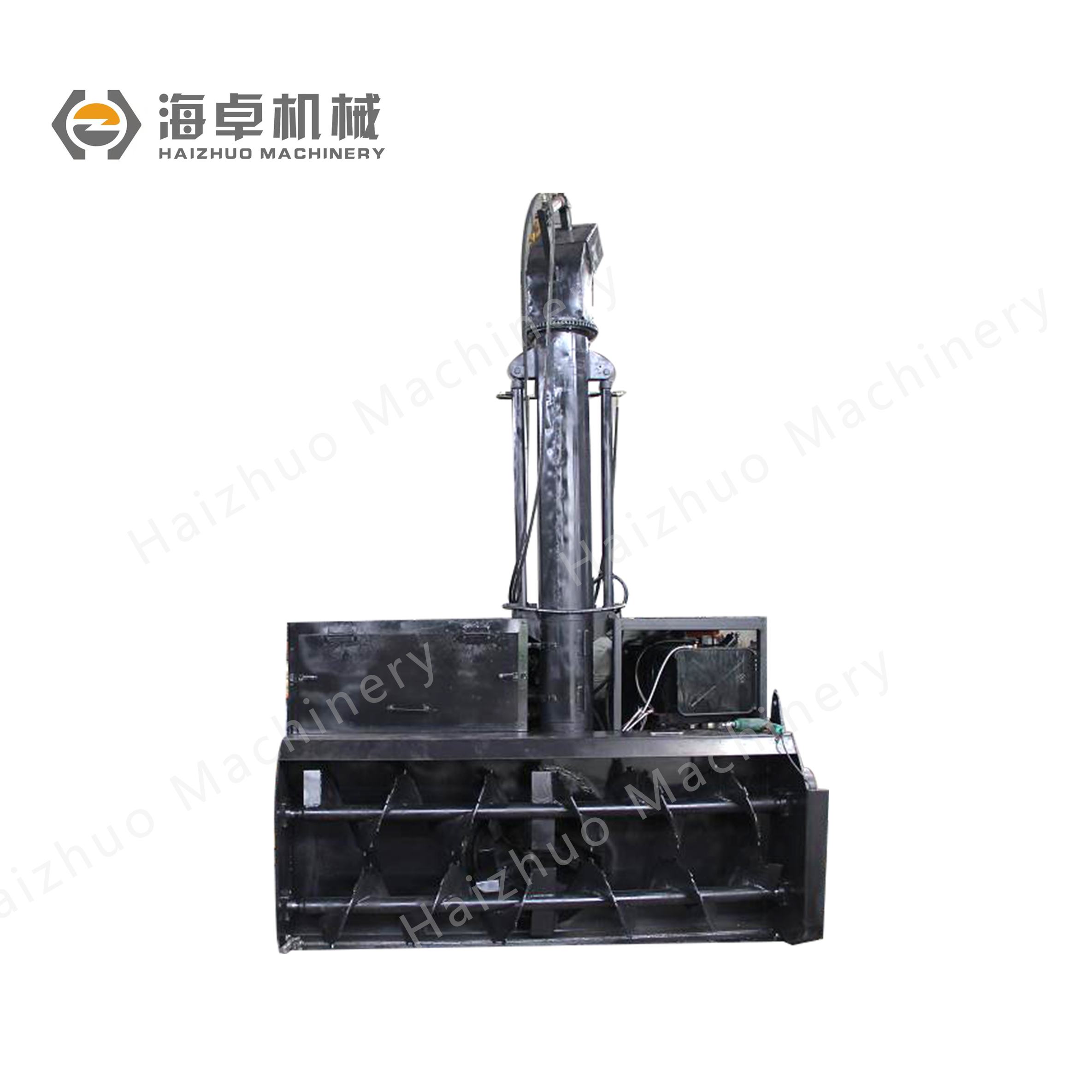

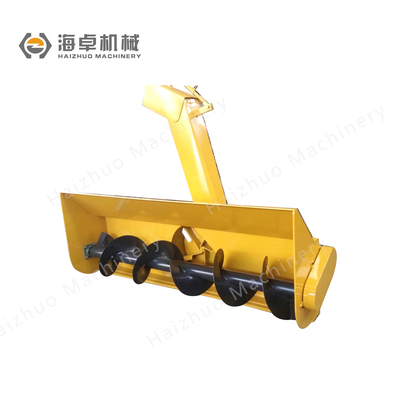

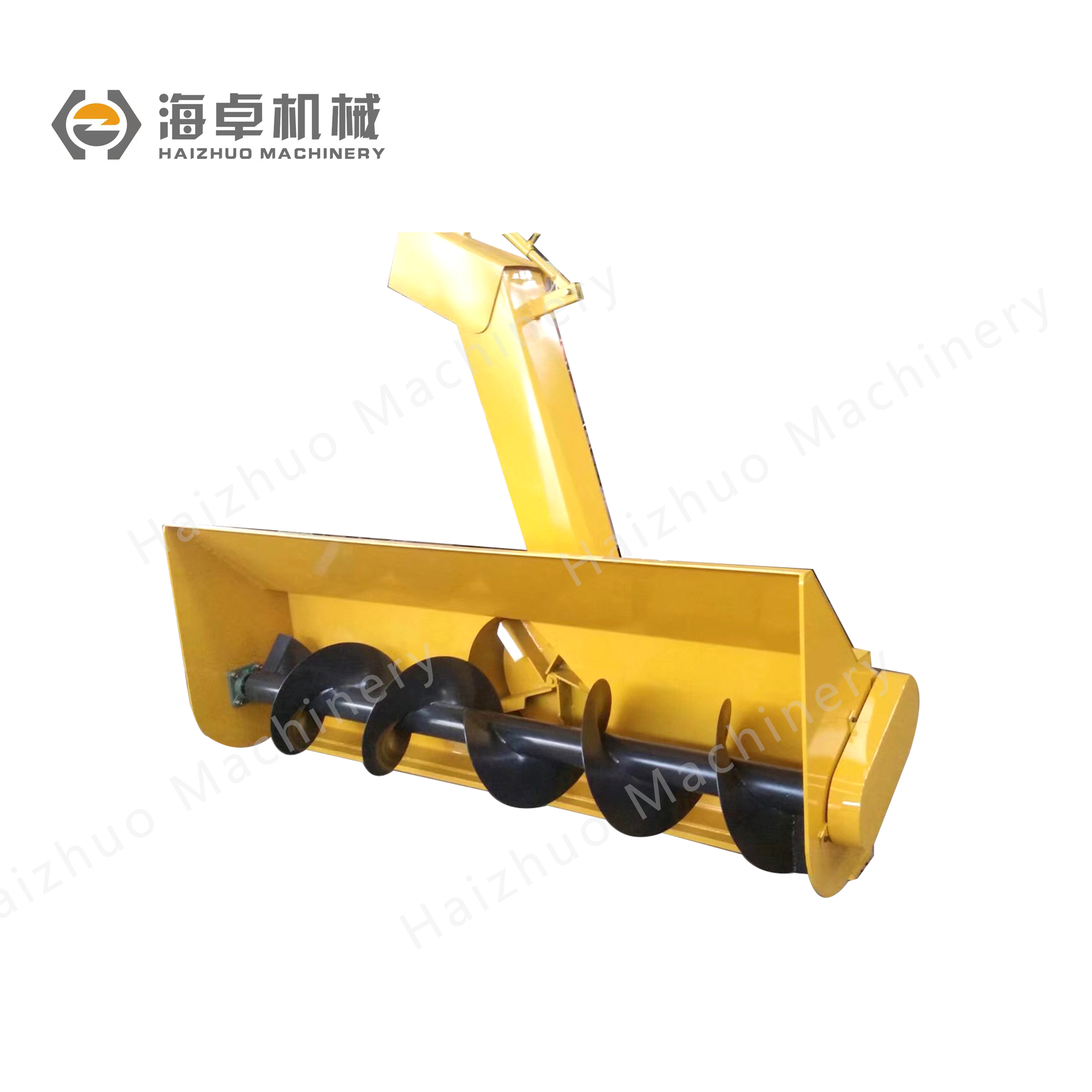

PXJ Series Snow Thrower
| FOB Price:US $1500-2800/Piece (Min. Order 1 Piece ) | |||
| Model No. | PXJ | Material | Carbon Steel |
| After-sales Service | Yes | Warranty | 12 Months |
| Rated Load | 1-3t | Transmission | Hydraulic |
| Type | Unpowered Assistive Device | Load and Unload Mode | Front Discharge |
| Power Source | With The Help of Connecting The Main Engine Power | DIY Item | Product Color, Connection and Auxiliary Functions |
| Walking Mode | Wheeled | External Connection | Loader′s Hydraulic System Refit |
| Snow Removal Width | 2~3m Custamizable | Snow Throwing Distance | 15m |
| Snow Throwing Direction | 180° | Maximum Snow Removal Thickness | 45cm |
| Production Capacity | 300sets/Year | Floating Snow Cleaning Rate | 95% |
| Specification | Match according to customized size | Trademark | haizhuo |
| Origin | Qingzhou Weifang China | Transport Package | Welding Support |
| Port of shipment | QingDao | HS Code | 8430200000 |

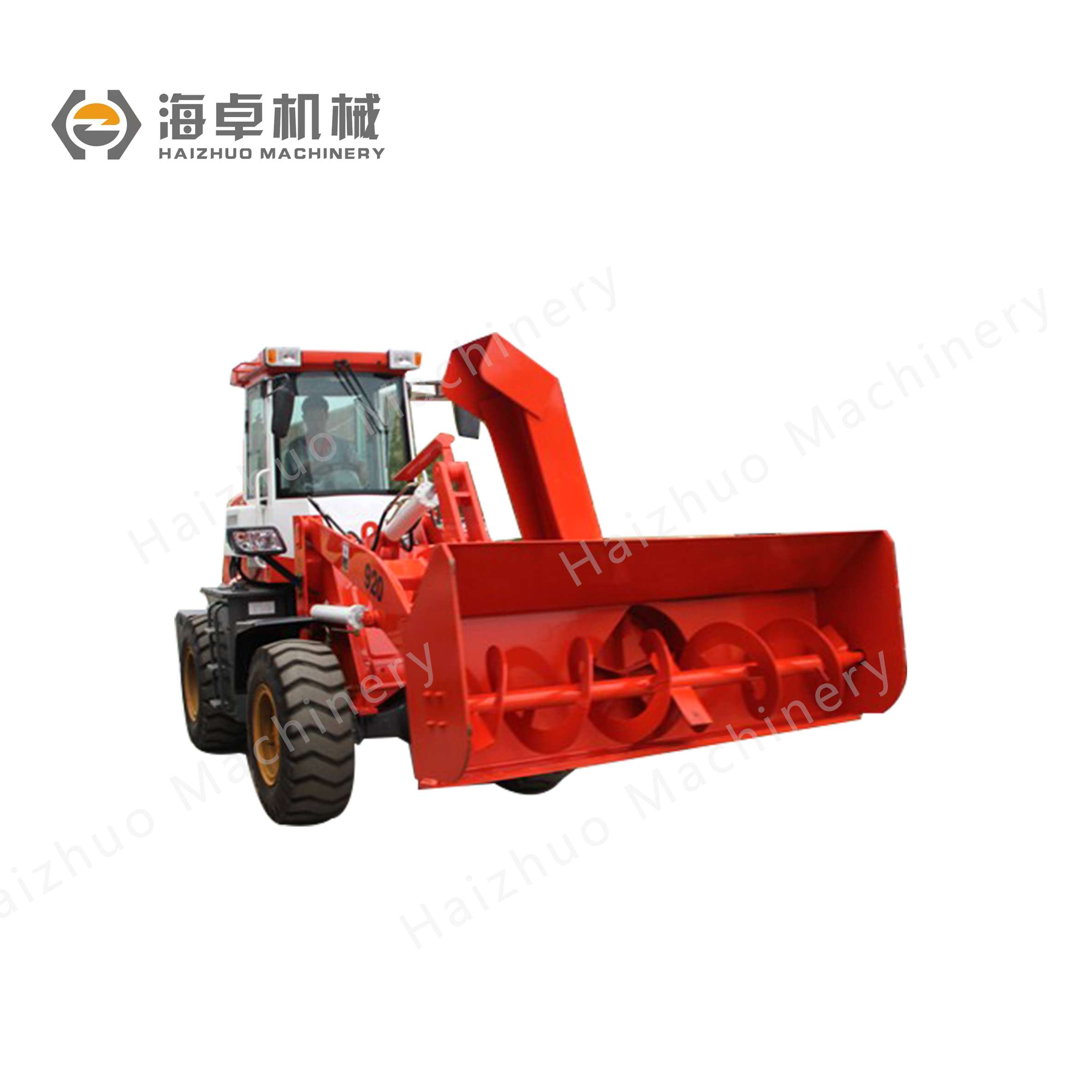

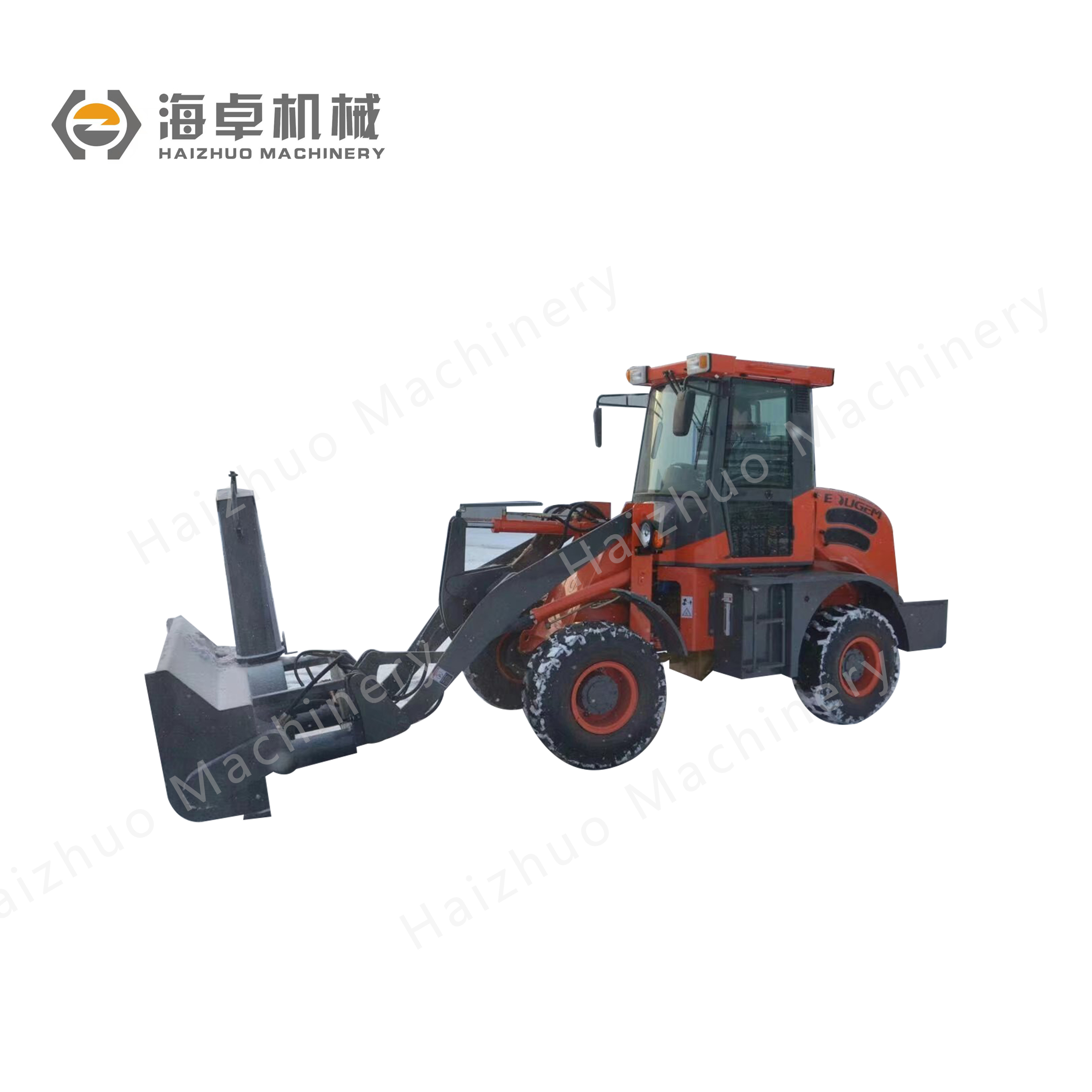

The snow thrower can be installed in the front of the loader.When the vehicle is moving forward, the snow entering the hopper is concentrated to the middle snow
wheel with the rotation of the stirring cage, and is thrown upward at high speed with the rotation of the snow wheel.
The height of the snow throwing tube is adjustable, and the snow throwing distance is increased.
The snow throwing cylinder can rotate 360 degrees to change the direction of throwing snow.
The angle at the snow throwing mouth can be adjusted to change the snow throwing distance; It can be used to throw the snow far away, or load the snow for transportation.
Parameters & Connection
| Technical Parameters of PXJ-2400 Series Snow Thrower | ||||
| No. | Project | Parameter value | Note | |
| 3T Wheel Loader | ||||
| 1 | Snow removal width(m) | 2.4 | Customizable | |
| 2 | Height of accessories(m) | 1 | ||
| 3 | Length of accessories(m) | 1.6 | ||
| 4 | Motor model | Snow throwing motor | A2F63 | |
| 5 | Auger motor | BM5-400 | ||
| 6 | Auger diameter(mm) | 450 | ||
| 7 | Throwing wheel diameter(mm) | 650 | ||
| 8 | Snow throwing distance(m) | 15 | ||
| 9 | Snow throwing direction | 360° | ||
| 10 | System pressure (MPa) | 16 | ||
| 11 | Floating snow cleaning rate | 95% | ||
| 12 | Maximum snow removal thickness (cm) | 45 | ||
| 13 | Power source | Connected to the hydraulic system of powered main engines such as forklifts, loaders, tractors, trucks, etc | ||
| Technical Parameters of PXJ-2000 Series Snow Thrower | ||||
| No. | Project | Parameter value | Note | |
| 2T Wheel Loader | ||||
| 1 | Snow removal width(m) | 2~2.2 | Customizable | |
| 2 | Height of accessories(m) | 1 | ||
| 3 | Length of accessories(m) | 1.6 | ||
| 4 | Motor model | Snow throwing motor | A2F45/A2F55 | |
| 5 | Auger motor | BM5-305 | ||
| 6 | Auger diameter(mm) | 450 | ||
| 7 | Throwing wheel diameter(mm) | 500 | ||
| 8 | Snow throwing distance(m) | 15 | ||
| 9 | Snow throwing direction | 360° | ||
| 10 | System pressure (MPa) | 16 | ||
| 11 | Floating snow cleaning rate | 95% | ||
| 12 | Maximum snow removal thickness (cm) | 45 | ||
| 13 | Power source | Connected to the hydraulic system of powered main engines such as forklifts, loaders, tractors, trucks, etc | ||
| Technical Parameters of PXJ-3000 Series Snow Thrower | ||||
| No. | Project | Parameter value | Note | |
| 5T Wheel Loader | ||||
| 1 | Snow removal width(m) | 3 | Customizable | |
| 2 | Height of accessories(m) | 1 | ||
| 3 | Length of accessories(m) | 1.6 | ||
| 4 | Motor model | Snow throwing motor | A2F63 | |
| 5 | Auger motor | BM5-500 | ||
| 6 | Auger diameter(mm) | 450 | ||
| 7 | Throwing wheel diameter(mm) | 650 | ||
| 8 | Snow throwing distance(m) | 15 | ||
| 9 | Snow throwing direction | 360° | ||
| 10 | System pressure (MPa) | 16 | ||
| 11 | Floating snow cleaning rate | 95% | ||
| 12 | Maximum snow removal thickness (cm) | 45 | ||
| 13 | Power source | Connected to the hydraulic system of powered main engines such as forklifts, loaders, tractors, trucks, etc | ||
Company Profile
We focus on the design and development of engineering loaders, excavators and agricultural equipment series, nonstandard hydraulic equipment pump valves.
Among them, the most competitive hydraulic pump/ valve/ motor and steering gear have an annual production capacity of 300,000 sets.
Integrate the management concept of HPS lean production into the R & D process, production process, quality monitoring and after-sales service.
We will continue to cooperate effectively with Carter Shangong, Shandong Lingong, Liugong,Longgong and so on! And We also sincerely hope to provide high-quality and low-cost products on the foreign trade platform to friends who are interested in purchasing abroad!
Cooperative Partner
Qualification & Certification
Packaging & Shipping
You can choose the transportion as you need,and the packaging process will be strictly implemented, and the perfect delivery will be ensure to you.
1.The product has high quality and low price, and can be maintained for a long time.
2.Shell castings are provided by high-quality HT/QT/RuT manufacturers to ensure excellent performance.
3.Use environmental water-based paint manipulator for automatic spraying to ensure high-quality appearance.
4.The best hydraulic R & D team in the industry, from the technical process to reassuring security.
FAQ
1. We are an experienced hydraulic parts manufacturer with over 10 years.
2. Our team: customers-focused,you'll get reply within 5-10 minutes.3. Haizhuo: Provide products with good cost performance.
Q:Can I get a sample?
Of course you can,but you may need to pay sample charge which will be returned after formal order signed.
Q:What about Haizhuo delivery term?
10-15 days after final payment received.
Q:What about the payment term?
30%~50%advance payment,70%~50% balance by T/T.
Q: How can I get your pricelist?
Send an enquiry to us,our sales will offer you a free quotation reply within 24 hours.
If you are interested in our products and descriptions, please contact our product specialist. Thank you very much!
